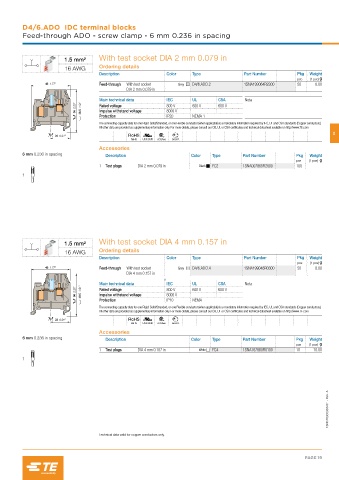

D4/6.ADO IDC terminal blocks
Feed-through ADO - screw clamp - 6 mm 0.236 in spacing

1.5 mm² With test socket DIA 2 mm 0.079 in
16 AWG Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
45 1.77" Feed-through With test socket Grey D4/6.ADO.2 1SNA199064R2300 50 8.00
DIA 2 mm 0.079 in

Main technical data IEC UL CSA Nota
56 2.20" 48.5 1.91" Rated voltage 800 V 600 V 600 V
Impulse withstand voltage
8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
2
23 0.91" C US
RoHS USR CNR cCSAus Gost R
Accessories
6 mm 0.236 in spacing Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
1

1.5 mm² With test socket DIA 4 mm 0.157 in
16 AWG Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
45 1.77" Feed-through With test socket Grey D4/6.ADO.4 1SNA199048R0300 50 8.00
DIA 4 mm 0.157 in
Main technical data IEC UL CSA Nota
56 2.20" 48.5 1.91" Rated voltage 800 V 600 V 600 V
Impulse withstand voltage
8000 V
Protection IP10 NEMA
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
23 0.91"
C US
RoHS USR CNR cCSAus Gost R
Accessories
6 mm 0.236 in spacing Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
1

1SNC163003S0201 - Rev. A

Technical data valid for copper conductors only.
