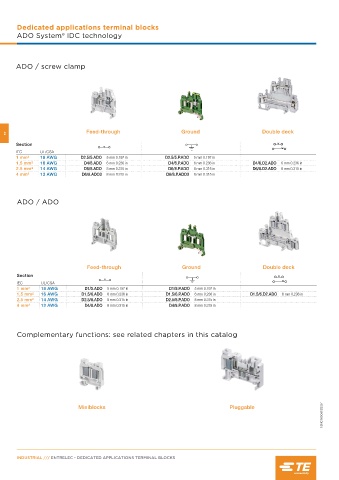

Page 306 - Entrelec Terminal Blocks Master Catalog
P. 306
Dedicated applications terminal blocks
ADO System® IDC technology
ADO / screw clamp
2 Feed-through Ground Double deck
Section
IEC UL/CSA
1 mm² 18 AWG D2.5/5.ADO 5 mm 0.197 in D2.5/5.P.ADO 5 mm 0.197 in
1.5 mm² 16 AWG D4/6.ADO 6 mm 0.236 in D4/6.P.ADO 6 mm 0.236 in D4/6.D2.ADO 6 mm 0.236 in
2.5 mm² 14 AWG D6/8.ADO 8 mm 0.315 in D6/8.P.ADO 8 mm 0.315 in D6/8.D2.ADO 8 mm 0.315 in
4 mm² 12 AWG D6/8.ADO3 8 mm 0.315 in D6/8.P.ADO3 8 mm 0.315 in
ADO / ADO
Feed-through Ground Double deck
Section
IEC UL/CSA
1 mm² 18 AWG D1/5.ADO 5 mm 0.197 in D1/5.P.ADO 5 mm 0.197 in
1.5 mm² 16 AWG D1.5/6.ADO 6 mm 0.236 in D1.5/6.P.ADO 6 mm 0.236 in D1.5/6.D2.ADO 6 mm 0.236 in
2.5 mm² 14 AWG D2.5/8.ADO 8 mm 0.315 in D2.5/8.P.ADO 8 mm 0.315 in
4 mm² 12 AWG D4/8.ADO 8 mm 0.315 in D4/8.P.ADO 8 mm 0.315 in
Complementary functions: see related chapters in this catalog
1SNC163081S0201
Miniblocks Pluggable
