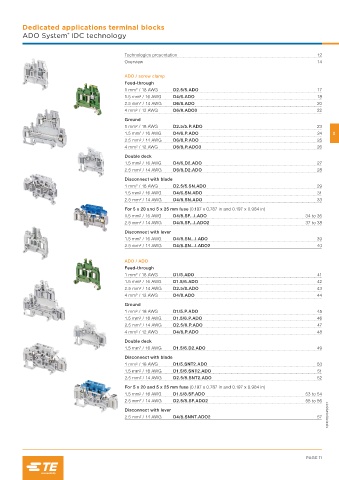

Dedicated applications terminal blocks
®
ADO System IDC technology

Technologies presentation 12
Overview 14

ADO / screw clamp
Feed-through
1 mm² / 18 AWG D2.5/5.ADO 17
1.5 mm² / 16 AWG D4/6.ADO 18
2.5 mm² / 14 AWG D6/8.ADO 20
4 mm² / 12 AWG D6/8.ADO3 22
Ground
1 mm² / 18 AWG D2.5/5.P.ADO 23
1.5 mm² / 16 AWG D4/6.P.ADO 24 2
2.5 mm² / 14 AWG D6/8.P.ADO 25
4 mm² / 12 AWG D6/8.P.ADO3 26
Double deck
1.5 mm² / 16 AWG D4/6.D2.ADO 27
2.5 mm² / 14 AWG D6/8.D2.ADO 28
Disconnect with blade
1 mm² / 18 AWG D2.5/5.SN.ADO 29
1.5 mm² / 16 AWG D4/6.SN.ADO 31
2.5 mm² / 14 AWG D4/8.SN.ADO 33

For 5 x 20 and 5 x 25 mm fuse (0.197 x 0.787 in and 0.197 x 0.984 in)
1.5 mm² / 16 AWG D4/8.SF...I.ADO 34 to 36
2.5 mm² / 14 AWG D4/8.SF...I.ADO2 37 to 38
Disconnect with lever
1.5 mm² / 16 AWG D4/8.SN...I.ADO 39
2.5 mm² / 14 AWG D4/8.SN...I.ADO2 40

ADO / ADO
Feed-through
1 mm² / 18 AWG D1/5.ADO 41
1.5 mm² / 16 AWG D1.5/6.ADO 42
2.5 mm² / 14 AWG D2.5/8.ADO 43
4 mm² / 12 AWG D4/8.ADO 44
Ground
1 mm² / 18 AWG D1/5.P.ADO 45
1.5 mm² / 16 AWG D1.5/6.P.ADO 46
2.5 mm² / 14 AWG D2.5/8.P.ADO 47
4 mm² / 12 AWG D4/8.P.ADO 48
Double deck
1.5 mm² / 16 AWG D1.5/6.D2.ADO 49
Disconnect with blade
1 mm² / 18 AWG D1/5.SNT2.ADO 50
1.5 mm² / 16 AWG D1.5/6.SNT2.ADO 51
2.5 mm² / 14 AWG D2.5/8.SNT2.ADO 52
For 5 x 20 and 5 x 25 mm fuse (0.197 x 0.787 in and 0.197 x 0.984 in)
1.5 mm² / 16 AWG D1.5/8.SF.ADO 53 to 54
2.5 mm² / 14 AWG D2.5/8.SF.ADO2 55 to 56
1SNC163102S0201
Disconnect with lever
2.5 mm² / 14 AWG D4/8.SNNT.ADO2 57

PAGE 11
