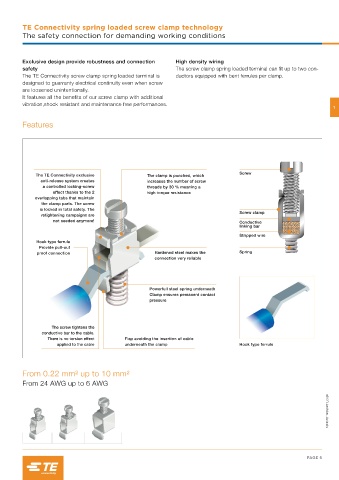

TE Connectivity spring loaded screw clamp technology
The safety connection for demanding working conditions

Exclusive design provide robustness and connection High density wiring
safety The screw clamp spring loaded terminal can fit up to two con-
The TE Connectivity screw clamp spring loaded terminal is ductors equipped with bent ferrules per clamp.
designed to guarranty electrical continuity even when screw
are loosened unintentionally.
It features all the benefits of our screw clamp with additional
vibration,shock resistant and maintenance free performances.
1

Features

Screw
The TE Connectivity exclusive The clamp is punched, which
anti-release system creates increases the number of screw
a controlled locking-screw threads by 30 % meaning a
effect thanks to the 2 high torque resistance
overlapping tabs that maintain
the clamp parts. The screw
is locked in total safety. The
Screw clamp
retightening campaigns are
not needed anymore! Conductive
linking bar
Stripped wire
Hook type ferrule
Provide pull-out
proof connection Hardened steel makes the Spring
connection very reliable

Powerfull steel spring underneath
Clamp ensures pemanent contact
pressure

The screw tightens the
conductive bar to the cable.
There is no torsion effect Flap avoiding the insertion of cable
applied to the cable underneath the clamp Hook type ferrule

From 0.22 mm² up to 10 mm²

From 24 AWG up to 6 AWG
