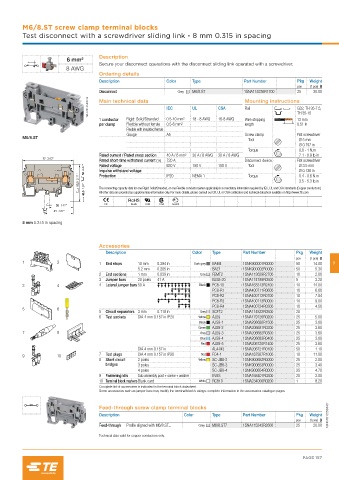

Page 449 - Entrelec Terminal Blocks Master Catalog

M6/8.ST screw clamp terminal blocks
Test disconnect with a screwdriver sliding link - 8 mm 0.315 in spacing

Description
6 mm²
Secure your disconnect operations with the disconnect sliding link operated with a screwdriver.
8 AWG
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Grey M6/8.ST 1SNA115236R1700 25 30.00
1SNC161214F0014 Main technical data IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-10 mm² 18 - 8 AWG 18-8 AWG Wire stripping 13 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.51 in
Flexible with insulated ferrule
Gauge A5 Screw clamp Flat screwdriver
M6/8.ST
Tool Ø 5 mm
Ø 0.197 in
Torque 0.8 - 1 N.m
Rated current / Rated cross section 40 A / 6 mm² 30 A / 8 AWG 30 A / 8 AWG 7.1 - 8.9 lb.in
77 3.03"
Rated short-time withstand current (1s) 720 A Disconnect device Flat screwdriver
56 2.21" Rated voltage 630 V 150 V 150 V Tool Ø 3.5 mm
Ø 0.138 in
Impulse withstand voltage
53.5 2.11" Protection IP20 NEMA 1 Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
48.5 1.91" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
36 1.42" CE RoHS USR CSA Gost R
41 1.61"
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00 7
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1 mm 0.039 in Grey FEMT2 1SNA113629R2700 10 2.00
3 Jumper bars 20 poles 41 A BJS8-20 1SNA174789R0500 5 3.20
3 4 4 Lateral jumper bars 50 A Black PC8-10 1SNA163313R2400 10 14.00
PC8-R1 1SNA400711R0600 10 6.60
PC8-R2 1SNA400712R0700 10 7.84
PC8-R3 1SNA400713R0000 10 9.00
PC8-R4 1SNA400724R0300 10 4.50
5 6
5 Circuit separators 3 mm 0.118 in Grey SCFT2 1SNA114522R0500 20
6 Test sockets DIA 4 mm 0.157 in IP20 Yellow AJS9 1SNA179726R0200 25 5.00
Black AJS9-1 1SNA206680R1500 25 3.60
Green AJS9-2 1SNA206681R0200 25 3.60
7 8 Grey AJS9-3 1SNA206682R0300 25 3.60
Blue AJS9-4 1SNA206683R0400 25 3.60
Red AJS9-5 1SNA206720R1400 25 3.60
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
9 10 7 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
8 Short circuit 2 poles Yellow SC-JB8-2 1SNK900652R0000 25 2.00
bridges 3 poles SC-JB8-3 1SNK900653R0000 25 3.40
4 poles SC-JB8-4 1SNK900654R0000 25 4.70
9 Fastening kits Sub assembly post + screw + washer EV8S 1SNA168401R0300 20 3.00
10 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Feed-through screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNC161055S0201
pce (1 pce) g
Feed-through Profile aligned with M6/8.ST... Grey M6/8.ST7 1SNA115243R2600 25 20.00
Technical data valid for copper conductors only.
