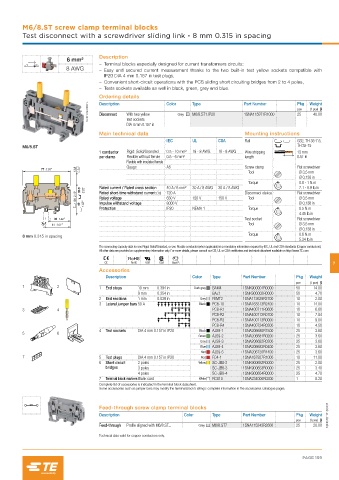

Page 451 - Entrelec Terminal Blocks Master Catalog

M6/8.ST screw clamp terminal blocks
Test disconnect with a screwdriver sliding link - 8 mm 0.315 in spacing

Description
6 mm²
– Terminal blocks especially designed for current transformers circuits:
8 AWG – Easy and secured current measurement thanks to the two built-in test yellow sockets compatible with
IP20 DIA 4 mm 0.157 in test plugs,
– Convenient short-circuit operations with the PCS sliding short circuiting bridges from 2 to 4 poles,
– Tests sockets available as well in black, green, grey and blue.
Ordering details Color Type Part Number Pkg Weight
1SNC161231F0014 Disconnect With two yellow Grey M6/8.ST1.IP20 1SNA115971R1000 pce (1 pce) g
Description
40.00
25
test sockets
DIA 4 mm 0.157 in
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
M6/8.ST TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 - 10 mm² 18 - 8 AWG 18 - 8 AWG Wire stripping 13 mm
per clamp Flexible without ferrule 0.5 - 6 mm² length 0.51 in
Flexible with insulated ferrule
77 3.03" 13.8 0.54" Gauge A5 Screw clamp Flat screwdriver
Tool
Ø 3.5 mm
Ø 0.138 in
Torque 0.8 - 1 N.m
7.1 - 8.9 lb.in
56.5 2.22" Rated current / Rated cross section 40 A / 6 mm² 30 A / 8 AWG 30 A / 8 AWG Disconnect device Flat screwdriver
54 2.13" Rated voltage 630 V 150 V 150 V Tool Ø 3.5 mm
720 A
Rated short-time withstand current (1s)
49 1.93" Impulse withstand voltage 8000 V Ø 0.138 in
Protection IP20 NEMA 1 Torque 0.5 N.m
4.45 lb.in
36 1.42" Test socket Flat screwdriver
41 1.61" Tool Ø 3.5 mm
Ø 0.138 in
Torque 0.6 N.m
8 mm 0.315 in spacing
5.34 lb.in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CSA Gost R 7
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
9 mm 0.354 in BAZ1 1SNK900002R0000 50 4.70
2 End sections 1 mm 0.039 in Grey FEMT2 1SNA113629R2700 10 2.00
3 Lateral jumper bars 50 A Black PC8-10 1SNA163313R2400 10 14.00
3 4 PC8-R1 1SNA400711R0600 10 6.60
PC8-R2 1SNA400712R0700 10 7.84
PC8-R3 1SNA400713R0000 10 9.00
PC8-R4 1SNA400724R0300 10 4.50
4 Test sockets DIA 4 mm 0.157 in IP20 Black AJS9-1 1SNA206680R1500 25 3.60
5 6
Green AJS9-2 1SNA206681R0200 25 3.60
Grey AJS9-3 1SNA206682R0300 25 3.60
Blue AJS9-4 1SNA206683R0400 25 3.60
Red AJS9-5 1SNA206720R1400 25 3.60
7 5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit 2 poles Yellow SC-JB8-2 1SNK900652R0000 25 2.00
bridges 3 poles SC-JB8-3 1SNK900653R0000 25 3.40
4 poles SC-JB8-4 1SNK900654R0000 25 4.70
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Feed-through screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNC161111S0201
pce (1 pce) g
Feed-through Profile aligned with M6/8.ST... Grey M6/8.ST7 1SNA115243R2600 25 20.00
Technical data valid for copper conductors only.
