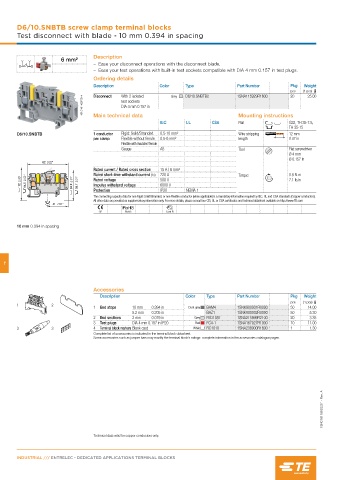

Page 456 - Entrelec Terminal Blocks Master Catalog

D6/10.SNBTB screw clamp terminal blocks
Test disconnect with blade - 10 mm 0.394 in spacing

Description
6 mm²
– Ease your disconnect operations with the disconnect blade,
– Ease your test operations with built-in test sockets compatible with DIA 4 mm 0.157 in test plugs.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Grey
Disconnect
25.00
20
1SNA115929R1600
D6/10.SNBTB2
With 2 isolated
1SNC161162F0014 test sockets
DIA 4 mm 0.157 in
Main technical data
G32, TH 35-7.5,
Rail
IEC UL CSA Mounting instructions
TH 35-15
D6/10.SNBTB 1 conductor Rigid: Solid/Stranded 0.5-10 mm² Wire stripping 12 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.47 in
Flexible with insulated ferrule
Gauge A5 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
82 3.22"
Rated current / Rated cross section 15 A / 6 mm² Torque 0.8 N.m
720 A
Rated short-time withstand current (1s)
72 2.83" 64.5 2.53" 51.2 2.01" 58.7 2.31" Rated voltage 500 V 7.1 lb.in
6000 V
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
41 1.61"
CE RoHS Gost R
10 mm 0.394 in spacing

7

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Grey FED10S1 1SNA215999R2100 20 3.35
3 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
3 3 4 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161155S0201 - Rev. A

Technical data valid for copper conductors only.
