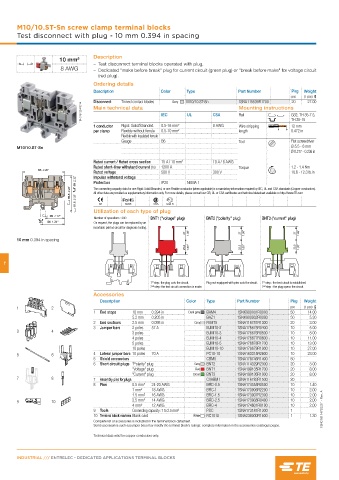

Page 458 - Entrelec Terminal Blocks Master Catalog

M10/10.ST-Sn screw clamp terminal blocks
Test disconnect with plug - 10 mm 0.394 in spacing

Description
10 mm²
– Test disconnect terminal blocks operated with plug,
8 AWG – Dedicated "make before break" plug for current circuit (green plug) or "break before make" for voltage circuit
(red plug).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Tinned contact blades Grey M10/10.ST-Sn 1SNA115539R1700 20 27.00
1SNC161224F0014 Main technical data IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-16 mm² 8 AWG Wire stripping 12 mm
per clamp Flexible without ferrule 0.5-10 mm² length 0.472 in
Flexible with insulated ferrule
Gauge B6 Tool Flat screwdriver
M10/10.ST-Sn Ø 5.5 - 6 mm
Ø 0.217 - 0.236 in
Rated current / Rated cross section 15 A / 10 mm² 10 A / 8 AWG
Rated short-time withstand current (1s) 1200 A Torque 1.2 - 1.4 Nm
63 2.48"
Rated voltage 500 V 300 V 10.6 - 12.3 lb.in
59 2.32" Impulse withstand voltage IP20 NEMA 1
Protection
55.5 2.22" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
51.5 2.02" CE RoHS CSA Gost R

Utilization of each type of plug
29 1.14"
Number of operations : 200 BNT1 ("voltage" plug) BNT2 ("polarity" plug) BNT3 ("current" plug)
34 1.34" On request, the plugs can be replaced by an
insertable printed circuit for diagnosis testing.
10 mm 0.394 in spacing

7

1 st step: the plug cuts the circuit. Plug not equipped with pins cuts the circuit. 1 st step : the test circuit is established
2 nd step: the test circuit connection is made. 2 nd step : the plug opens the circuit.
Accessories
Description Color Type Part Number Pkg Weight
1 2 pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEMT5 1SNA116781R1300 20 3.00
3 Jumper bars 2 poles 57 A BJMI10-2 1SNA176675R0400 10 5.00
3 4
3 poles BJMI10-3 1SNA176676R0500 10 8.00
4 poles BJMI10-4 1SNA176677R0600 10 11.00
5 poles BJMI10-5 1SNA176678R1700 10 13.00
10 poles BJMI10-10 1SNA176679R1000 10 27.00
5 6 4 Lateral jumper bars 10 poles 70 A PC10-10 1SNA163315R2600 10 23.00
5 Shield connectors CBM5 1SNA178745R1400 50
6 Short circuit plugs "Polarity" plug Grey BNT2 1SNA114329R2300 20 3.00
"Voltage" plug Red BNT1 1SNA199135R1700 20 8.00
"Current" plug Green BNT3 1SNA199136R1000 20 8.00
7 8 7 Assembly pins for plugs CVABM1 1SNA116783R1500 20
8 Pins 0.5 mm² 24-20 AWG BRC-0.5 1SNA174558R0500 10 1.40
1 mm² 18 AWG BRC-1 1SNA173906R2200 10 2.00
1.5 mm² 16 AWG BRC-1.5 1SNA173907R2300 10 2.00
2.5 mm² 14 AWG BRC-2.5 1SNA173908R0400 10 2.00
9 10
4 mm² 12 AWG BRC-4 1SNA174601R0100 10 2.00
9 Tools Connecting capacity: 1 to 2.5 mm² PSC 1SNA173181R1300 1 1SNC161147S0201 - Rev. A
10 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Technical data valid for copper conductors only.
