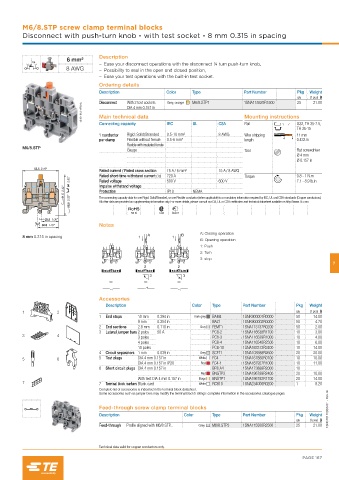

P. 459

M6/8.STP screw clamp terminal blocks
         Disconnect with push-turn knob - with test socket - 8 mm 0.315 in spacing



                                    Description
                        6 mm²
            1/4
                                       – Ease your disconnect operations with the disconnect ¼ turn push-turn knob,
                        8 AWG          – Possibility to seal in the open and closed position,
                                       – Ease your test operations with the built-in test socket.
                                    Ordering details
                                    Description            Color     Type              Part Number       Pkg  Weight
                                                                                                         qty  (1 pce) g
                                    Disconnect
                                                            Grey, orange
                                              With 2 test sockets
                                                                     M6/8.STP1
                                                                                                         25
                                                                                       1SNA115529R1500
                                                                                                               21.00
                              1SNC161217F0014  Main technical data                     Mounting instructions
                                              DIA 4 mm 0.157 in
                                    Connecting capacity     IEC      UL       CSA      Rail              G32, TH 35-7.5,
                                                                                                         TH 35-15
                                    1 conductor   Rigid: Solid/Stranded  0.5-10 mm²  8 AWG  Wire stripping   11 mm
                                    per clamp  Flexible without ferrule  0.5-6 mm²     length            0.433 in
                                              Flexible with insulated ferrule
         M6/8.STP
                                              Gauge                                    Tool              Flat screwdriver
                                                                                                         Ø 4 mm
                                                                                                         Ø 0.157 in
             55.5  2.19"
                                    Rated current / Rated cross section  15 A / 6 mm²  15 A / 8 AWG
                                    Rated short-time withstand current (1s)  720 A     Torque            0.8 - 1 N.m
                         64  2.52"  Rated voltage           500 V             600 V                      7.1 - 8.9 lb.in
                                    Impulse withstand voltage
                       61.5  2.42"  Protection              IP10     NEMA
                         56.5  2.22"  The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
                                    All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
                                               RoHS      CSA  Gost R
                 25.5  1.00"
                30.5  1.20"         Notes
                                                                       A: Closing operation
         8 mm 0.315 in spacing                    1  A        1  B
                                                                       B: Opening operation
                                                                       1: Push
                                                                       2: Turn
                                                                       3: stop
                                                                                                                      7
                                                    2          2
                                                      3          3



                                    Accessories
                                      Description                   Color   Type      Part Number        Pkg  Weight
         1           2                                                                                   qty  (1 pce) g
                                    1  End stops  10 mm  0.394 in    Dark grey  BAM4  1SNK900001R0000    50    14.00
                                                 9 mm   0.354 in            BAZ1      1SNK900002R0000    50     4.70
                                    2  End sections  2.8 mm  0.110 in  Grey  FEMT1    1SNA113137R0200    50     2.00
                                    3  Lateral jumper bars 2 poles  50 A    PC8-2     1SNA116538R1700    10     3.00
         3           4                           3 poles                    PC8-3     1SNA116539R1000    10     4.00
                                                 4 poles                    PC8-4     1SNA116540R2500    10     6.00
                                                 10 poles                   PC8-10    1SNA163313R2400    10    14.00
                                    4  Circuit separators 1 mm  0.039 in  Grey  SCFT1  1SNA103588R2600   20    20.00
         5           6              5  Test plugs  DIA 4 mm 0.157 in   White  FC4     1SNA167860R0100    10    10.00
                                                 DIA 4 mm 0.157 in IP20  Red  FC4-1   1SNA167927R1000    10    11.00
                                    6  Short circuit plugs DIA 4 mm 0.157 in  BP8.A4  1SNA173888R2000    10
                                                                        Red  BNSTP2   1SNA196789R2400    20    10.00
                                                 With test DIA 4 mm 0.157 in  Beige  BNSTP1  1SNA196792R1700  20  14.00
         7                          7  Terminal block markers Blank card  White  RC810  1SNA234000R0200  1      8.20
                                    Complete list of accessories is indicated in the terminal block datasheet.
                                    Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

                                    Feed-through screw clamp terminal blocks                                        1SNC161108S0201 - Rev. B
                                    Description                   Color     Type      Part Number        Pkg  Weight
                                                                                                         qty  (1 pce) g
                                    Feed-through  Profile aligned with M6/8 STP...  Grey  M6/8.STP3  1SNA115500R2500  25  21.00



                                    Technical data valid for copper conductors only.
                                                                                                           PAGE 167
