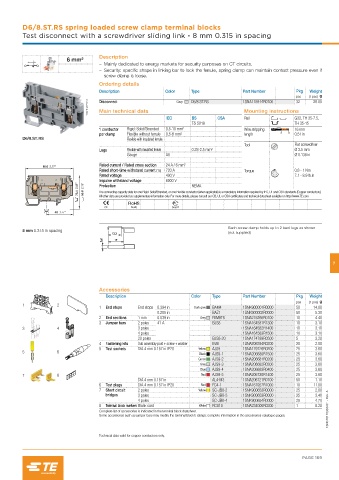

Page 461 - Entrelec Terminal Blocks Master Catalog

D6/8.ST.RS spring loaded screw clamp terminal blocks
Test disconnect with a screwdriver sliding link - 8 mm 0.315 in spacing

Description
6 mm²
– Mainly dedicated to energy markets for security purposes on CT circuits,
– Security: specific shape in linking bar to lock the ferrule, spring clamp can maintain contact pressure even if
screw clamp is loose.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
D6/8.ST.RS
Disconnect
1SNC161277F0014 Main technical data Mounting instructions
28.00
1SNA115914R0700
32
Grey
IEC BS CSA Rail G32, TH 35-7.5,
TS 5018 TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-10 mm² Wire stripping 16 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.51 in
D6/8.ST.RS Flexible with insulated ferrule
Tool Flat screwdriver
Lugs Flexible with JOTVMBUFE GFSSVMF 0.28-2.5 mm² Ø 3.5 mm
Gauge A5 Ø 0.138 in
85.6 3.37" Rated current / Rated cross section 24 A / 6 mm²
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 Nm
Rated voltage 400 V 7.1 - 8.9 lb.in
Impulse withstand voltage 6000 V
78.4 3.08" 55.8 2.19" Protection NEMA
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS Gost R
45 1.77"

Each screw clamp holds up to 2 bent lugs as shown
8 mm 0.315 in spacing
(not supplied)

7

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops End stops 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 1 mm 0.039 in Grey FEM8T6 1SNA215266R0100 10 4.40
3 Jumper bars 2 poles 41 A BJS8 1SNA164581R1300 10 3.10
3 4 3 poles 1SNA164582R1400 10 3.10
4 poles 1SNA164583R1500 10 3.10
20 poles BJS8-20 1SNA174789R0500 5 3.20
4 Fastening kits Sub assembly post + screw + washer EV6I 1SNA206394R0200 20 2.00
5 Test sockets DIA 4 mm 0.157 in IP20 Yellow AJS9 1SNA179726R0200 25 3.60
5 6
Black AJS9-1 1SNA206680R1500 25 3.60
Green AJS9-2 1SNA206681R0200 25 3.60
Grey AJS9-3 1SNA206682R0300 25 3.60
Blue AJS9-4 1SNA206683R0400 25 3.60
7 8 Red AJS9-5 1SNA206720R1400 25 3.60
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
6 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
7 Short circuit 2 poles Yellow SC-JB8-2 1SNK900652R0000 25 2.00
bridges 3 poles SC-JB8-3 1SNK900653R0000 25 3.40
4 poles SC-JB8-4 1SNK900654R0000 25 4.70
8 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet. 1SNC161153S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
