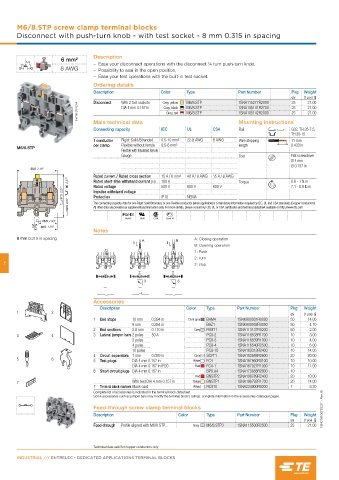

Page 460 - Entrelec Terminal Blocks Master Catalog

M6/8.STP screw clamp terminal blocks
Disconnect with push-turn knob - with test socket - 8 mm 0.315 in spacing

Description
6 mm²
1/4
– Ease your disconnect operations with the disconnect ¼ turn push-turn knob,
8 AWG – Possibility to seal in the open position,
– Ease your test operations with the built-in test socket.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
25
21.00
With 2 test sockets
Disconnect
Grey, yellow
M6/8.STP
1SNA115277R2000
1SNC161210F0014 DIA 4 mm 0.157 in Grey, black M6/8.STP 1SNA105141R2700 25 21.00
21.00
25
1SNA105142R2000
M6/8.STP
Grey, red
Main technical data
Rail
Connecting capacity IEC UL CSA Mounting instructions G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-10 mm² 22-8 AWG 8 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.5-6 mm² length 0.433 in
M6/8.STP
Flexible with insulated ferrule
Gauge Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
55.5 2.19"
Rated current / Rated cross section 15 A / 6 mm² 40 A / 8 AWG 15 A / 8 AWG
60 2.37" Rated short-time withstand current (1s) 180 A 600 V 600 V Torque 0.8 - 1 N.m
500 V
Rated voltage
7.1 - 8.9 lb.in
57.5 2.27" Impulse withstand voltage IP10 NEMA
Protection
52.5 2.07" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CSA Gost R
25.5 1.00"
30.5 1.20"
Notes
8 mm 0.315 in spacing A: Closing operation
1 A 1 B
B: Opening operation
1: Push
2: Turn
7 3: stop
2 2
3 3
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
9 mm 0.354 in BAZ1 1SNK900002R0000 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEMT1 1SNA113137R0200 50 2.00
3 4 3 Lateral jumper bars 2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
4 Circuit separators 1 mm 0.039 in Grey SCFT1 1SNA103588R2600 20 20.00
5 6
5 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
Red BNSTP2 1SNA196789R2400 20 10.00
7 With test DIA 4 mm 0.157 in Beige BNSTP1 1SNA196792R1700 20 14.00
7 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Feed-through screw clamp terminal blocks 1SNC161067S0201 - Rev. B
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Feed-through Profile aligned with M6/8 STP... Grey M6/8.STP3 1SNA115500R2500 25 21.00

Technical data valid for copper conductors only.
