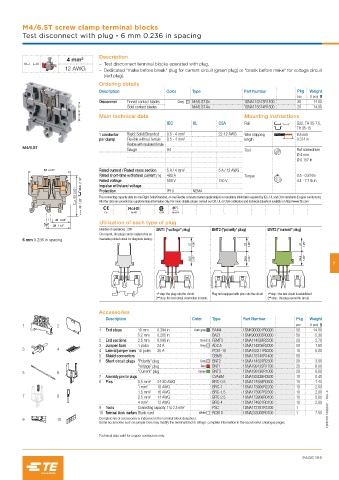

M4/6.ST screw clamp terminal blocks
Test disconnect with plug - 6 mm 0.236 in spacing

Description
4 mm²
– Test disconnect terminal blocks operated with plug,
12 AWG – Dedicated "make before break" plug for current circuit (green plug) or "break before make" for voltage circuit
(red plug).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Tinned contact blades Grey M4/6.ST.Sn 1SNA115313R1400 20 14.00
1SNC161211F0014 Main technical data Mounting instructions
20
14.00
Gold contact blades
1SNA115314R1500
M4/6.ST.Au
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 - 4 mm² 22-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.5 - 4 mm² length 0.374 in
Flexible with insulated ferrule
M4/6.ST
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
53 2.09" Rated current / Rated cross section 5 A / 4 mm² 5 A / 12 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 Nm
55.5 2.19" Rated voltage 500 V 150 V 4.4 - 7.1 lb.in
Impulse withstand voltage
53 2.09" Protection IP10 NEMA
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
48 1.89" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS CSA Gost R
24 0.94"
Utilization of each type of plug
29 1.14"
Number of operations : 200 BNT1 ("voltage" plug) BNT2 ("polarity" plug) BNT3 ("current" plug)
On request, the plugs can be replaced by an
6 mm 0.236 in spacing insertable printed circuit for diagnosis testing.

7

1 st step: the plug cuts the circuit. Plug not equipped with pins cuts the circuit. 1 st step : the test circuit is established
2 nd step: the test circuit connection is made. 2 nd step : the plug opens the circuit.

Accessories
Description Color Type Part Number Pkg Weight
1 2 pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEMT3 1SNA114328R2200 20 2.70
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Shield connectors CBM5 1SNA178745R1400 50
6 Short circuit plugs "Polarity" plug Grey BNT2 1SNA114329R2300 20 3.00
"Voltage" plug Red BNT1 1SNA199135R1700 20 8.00
5 6 "Current" plug Green BNT3 1SNA199136R1000 20 8.00
7 Assembly pins for plugs CVABM 1SNA183436R0500 10 0.40
8 Pins 0.5 mm² 24-20 AWG BRC-0.5 1SNA174558R0500 10 1.40
1 mm² 18 AWG BRC-1 1SNA173906R2200 10 2.00
1.5 mm² 16 AWG BRC-1.5 1SNA173907R2300 10 2.00
7 8 2.5 mm² 14 AWG BRC-2.5 1SNA173908R0400 10 2.00
4 mm² 12 AWG BRC-4 1SNA174601R0100 10 2.00
9 Tools Connecting capacity: 1 to 2.5 mm² PSC 1SNA173181R1300 1 1SNC161140S0201 - Rev. A
10 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
9 10 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Technical data valid for copper conductors only.
