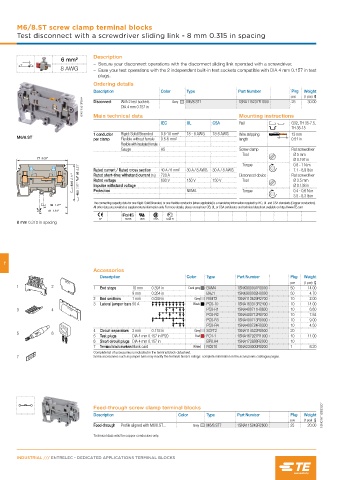

Page 450 - Entrelec Terminal Blocks Master Catalog

M6/8.ST screw clamp terminal blocks
Test disconnect with a screwdriver sliding link - 8 mm 0.315 in spacing

Description
6 mm²
– Secure your disconnect operations with the disconnect sliding link operated with a screwdriver,
8 AWG – Ease your test operations with the 2 independent built-in test sockets compatible with DIA 4 mm 0.157 in test
plugs.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC161213F0014 DIA 4 mm 0.157 in
Disconnect
30.00
25
With 2 test sockets
1SNA115237R1000
M6/8.ST1
Grey
Main technical data
IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-10 mm² 18 - 8 AWG 18-8 AWG Wire stripping 13 mm
M6/8.ST
per clamp Flexible without ferrule 0.5-6 mm² length 0.51 in
Flexible with insulated ferrule
Gauge A5 Screw clamp Flat screwdriver
Tool Ø 5 mm
77 3.03"
Ø 0.197 in
56 2.21" Rated current / Rated cross section 40 A / 6 mm² 30 A / 8 AWG 30 A / 8 AWG Torque 0.8 - 1 N.m
7.1 - 8.9 lb.in
53.5 2.11" Rated short-time withstand current (1s) 720 A 150 V 150 V Disconnect device Flat screwdriver
Ø 3.5 mm
Tool
Rated voltage
630 V
48.5 1.91" Impulse withstand voltage NEMA Torque Ø 0.138 in
Protection
0.4 - 0.6 N.m
3.5 - 5.3 lb.in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
36 1.42"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
41 1.61"
CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
7
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
9 mm 0.354 in BAZ1 1SNK900002R0000 50 4.70
2 End sections 1 mm 0.039 in Grey FEMT2 1SNA113629R2700 10 2.00
3 Lateral jumper bars 50 A Black PC8-10 1SNA163313R2400 10 14.00
3 4 PC8-R1 1SNA400711R0600 10 6.60
PC8-R2 1SNA400712R0700 10 7.84
PC8-R3 1SNA400713R0000 10 9.00
PC8-R4 1SNA400724R0300 10 4.50
4 Circuit separators 3 mm 0.118 in Grey SCFT2 1SNA114522R0500 20
5 6
5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Feed-through screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNC161109S0201
pce (1 pce) g
Feed-through Profile aligned with M6/8.ST... Grey M6/8.ST7 1SNA115243R2600 25 20.00
Technical data valid for copper conductors only.
