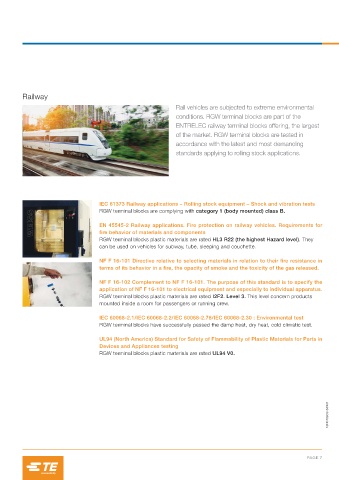

Page 571 - Entrelec Terminal Blocks Master Catalog
P. 571
Railway
Rail vehicles are subjected to extreme environmental
conditions. RGW terminal blocks are part of the
ENTRELEC railway terminal blocks offering, the largest
of the market. RGW terminal blocks are tested in
accordance with the latest and most demanding
standards applying to rolling stock applications.
IEC 61373 Railway applications – Rolling stock equipment – Shock and vibration tests
RGW terminal blocks are complying with category 1 (body mounted) class B.
EN 45545-2 Railway applications. Fire protection on railway vehicles. Requirements for
fire behavior of materials and components
RGW terminal blocks plastic materials are rated HL3 R22 (the highest Hazard level). They
can be used on vehicles for subway, tube, sleeping and couchette.
NF F 16-101 Directive relative to selecting materials in relation to their fire resistance in
terms of its behavior in a fire, the opacity of smoke and the toxicity of the gas released.
NF F 16-102 Complement to NF F 16-101. The purpose of this standard is to specify the
application of NF F 16-101 to electrical equipment and especially to individual apparatus.
RGW terminal blocks plastic materials are rated I2F2. Level 3. This level concern products
mounted inside a room for passengers or running crew.
IEC 60068-2.1/IEC 60068-2.2/IEC 60068-2.78/IEC 60068-2.30 : Environmental test
RGW terminal blocks have successfully passed the damp heat, dry heat, cold climatic test.
UL94 (North America) Standard for Safety of Flammability of Plastic Materials for Parts in
Devices and Appliances testing
RGW terminal blocks plastic materials are rated UL94 V0.
1SNC168034S0201
PAGE 7
