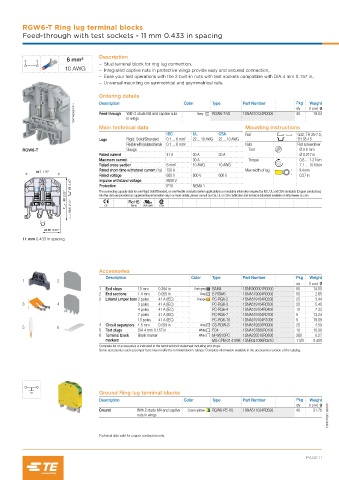

Page 575 - Entrelec Terminal Blocks Master Catalog

RGW6-T Ring lug terminal blocks
Feed-through with test sockets - 11 mm 0.433 in spacing

Description
6 mm²
– Stud terminal block for ring lug connection,
10 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Ease your test operations with the 2 built-in nuts with test sockets compatible with DIA 4 mm 0.157 in,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details Color Type Part Number Pkg Weight
Description
1SNC168068V0014 Feed-through With 2 studs M4 and captive nuts Grey RGW6-T-V0 1SNA510124R0000 qty (1 pce) g
19.04
40
in wings
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 0.1 … 6 mm² 22 ... 10 AWG 22 ... 10 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 6 mm² Nuts Flat screwdriver
RGW6-T Gauge Tool Ø 5.5 mm
Rated current 41 A 30 A 30 A Ø 0.217 in
Maximum current 30 A Torque 0.8 ... 1.2 N.m
Rated cross section 6 mm² 10 AWG 10 AWG 7.1 ... 10.6 lb.in
44.7 1.76" Rated short-time withstand current (1s) 720 A Max width of lug 9.4 mm
Rated voltage 800 V 600 V 600 V 0.37 in
61 2.40" Impulse withstand voltage 8000 V NEMA 1
IP10
Protection
58 2.28" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
53.5 2.10" CE RoHS USR CNR CSA

22.35 0.88"
11 mm 0.433 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 1.4 mm 0.055 in Grey E-RGW6 1SNA519004R0000 50 2.65
3 Lateral jumper bars 2 poles 41 A (IEC) Orange PC-RG6-2 1SNA519104R0200 25 3.44
3 4 3 poles 41 A (IEC) PC-RG6-3 1SNA519104R0300 20 5.40
4 poles 41 A (IEC) PC-RG6-4 1SNA519104R0400 15 7.33
7 poles 41 A (IEC) PC-RG6-7 1SNA519104R0700 5 13.24
10 poles 41 A (IEC) PC-RG6-10 1SNA519104R1000 5 19.05
4 Circuit separators 1.5 mm 0.059 in Grey CS-RGW-S 1SNA519200R0000 25 4.59
5 6
5 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
6 Terminal block Blank marker White M-W810PC 1SNA235510R0800 260 0.27
markers MG-CPM-01 41096 1SNB041096R0810 1120 0.400
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground Ring lug terminal blocks
Description Color Type Part Number Pkg Weight
1SNC168019S0201
qty (1 pce) g
Ground With 2 studs M4 and captive Green-yellow RGW6-PE-V0 1SNA511024R0500 40 31.76
nuts in wings

Technical data valid for copper conductors only.
