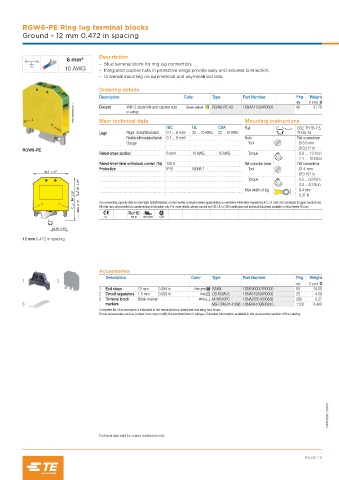

Page 579 - Entrelec Terminal Blocks Master Catalog

RGW6-PE Ring lug terminal blocks
Ground - 12 mm 0.472 in spacing

Description
6 mm²
– Stud terminal block for ring lug connection,
10 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNC168069V0014 in wings
1SNA511024R0500
With 2 studs M4 and captive nuts
40
31.76
RGW6-PE-V0
Ground
Green-yellow
Main technical data
IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 0.1 … 6 mm² 22 ... 10 AWG 22 ... 10 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 6 mm² Nuts Flat screwdriver
Gauge Tool Ø 5.5 mm
Ø 0.217 in
RGW6-PE
Rated cross section 6 mm² 10 AWG 10 AWG Torque 0.8 ... 1.2 N.m
7.1 ... 10.6 lb.in
Rated short-time withstand current (1s) 720 A Rail connection screw Flat screwdriver
Protection IP10 NEMA 1 Tool Ø 4 mm
44.7 1.76"
Ø 0.157 in
Torque
0.5 ... 0.8 N.m
61 2.40" Max width of lug 4.4 ... 5.3 lb.in
9.4 mm
58 2.28" 0.37 in
53.5 2.10" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CNR CSA
22.35 0.88"
12 mm 0.472 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 Circuit separators 1.5 mm 0.059 in Grey CS-RGW-S 1SNA519200R0000 25 4.59
3 Terminal block Blank marker White M-W810PC 1SNA235510R0800 260 0.27
3 markers MG-CPM-01 41096 1SNB041096R0810 1120 0.400
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNC168017S0201

Technical data valid for copper conductors only.
