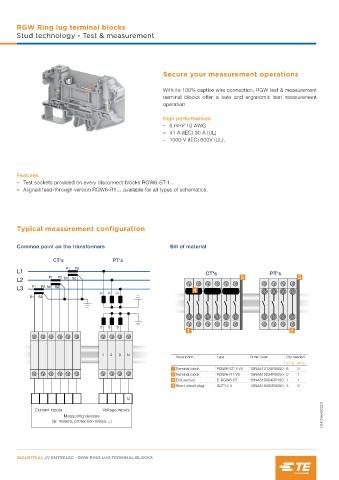

Page 580 - Entrelec Terminal Blocks Master Catalog

RGW Ring lug terminal blocks
Stud technology - Test & measurement

Secure your measurement operations

With its 100% captive wire connection, RGW test & measurement
terminal blocks offer a safe and ergonomic test measurement
operation.

High performances
– 6 mm² 10 AWG
– 41 A (IEC) 30 A (UL)
– 1000 V (IEC) 600V (UL).

Features
– Test sockets provided on every disconnect blocks RGW6-ST-1…
– Aligned feed-through version RGW6-R1… available for all types of schematics.

Typical measurement configuration

Common point on the transformers Bill of material

CT's PT's
P1 P2
L1
CT's PT's
P1 P2 S1 S2 3 3
L2
L3 P1 P2 S1 S2 4
P P P
S1 S2

S S S
1 2

1 2 3 N
Description Type Order code Qty needed
CT’s PT’s
1 Terminal block RGW6-ST-1-V0 1SNA512124R0000 6 3
2 Terminal block RGW6-R1-V0 1SNA510224R0000 0 1
3 End section E-RGW6-ST 1SNA519004R0100 1 1
4 Short-circuit plug SCP12-2 1SNA519300R0200 3 0

N
1SNC168038S0201
Current inputs Voltage inputs
Measuring devices
(ie: meters, protection relays…)
