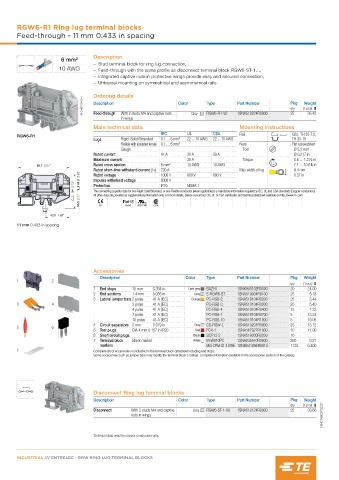

Page 582 - Entrelec Terminal Blocks Master Catalog

RGW6-R1 Ring lug terminal blocks
Feed-through - 11 mm 0.433 in spacing

Description
6 mm²
– Stud terminal block for ring lug connection,
10 AWG – Feed-through with the same profile as disconnect terminal block RGW6-ST-1…,
– Integrated captive nuts in protective wings provide easy and secured connection,
– Universal mounting on symmetrical and asymmetrical rails.

1SNC168070V0014 Ordering details Color Type Part Number Pkg (1 pce) g
Description
Weight
qty
Feed-through
With 2 studs M4 and captive nuts
in wings Grey RGW6-R1-V0 1SNA510224R0000 25 36.42
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
RGW6-R1
Lugs Rigid: Solid/Stranded 0.1 … 6 mm² 22 ... 10 AWG 22 ... 10 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 6 mm² Nuts Flat screwdriver
Gauge Tool Ø 5.5 mm
Rated current 41 A 30 A 30 A Ø 0.217 in
Maximum current 30 A Torque 0.8 ... 1.2 N.m
85.7 3.37" Rated cross section 6 mm² 10 AWG 10 AWG 7.1 ... 10.6 lb.in
Rated short-time withstand current (1s) 720 A Max width of lug 9.4 mm
61.5 2.42" Rated voltage 1000 V 600 V 600 V 0.37 in
Impulse withstand voltage
8000 V
54 2.13" Protection IP10 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
53.5 2.11" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CSA
CE
RoHS
USR CNR
42.6 1.68"
11 mm 0.433 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1.4 mm 0.055 in Grey E-RGW6-ST 1SNA519004R0100 25 5.18
3 Lateral jumper bars 2 poles 41 A (IEC) Orange PC-RG6-2 1SNA519104R0200 25 3.44
3 4 3 poles 41 A (IEC) PC-RG6-3 1SNA519104R0300 20 5.40
4 poles 41 A (IEC) PC-RG6-4 1SNA519104R0400 15 7.33
7 poles 41 A (IEC) PC-RG6-7 1SNA519104R0700 5 13.24
10 poles 41 A (IEC) PC-RG6-10 1SNA519104R1000 5 19.05
4 Circuit separators 2 mm 0.079 in Grey CS-RGW-L 1SNA519201R0000 25 13.72
5 6
5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs Black SCP12-2 1SNA519300R0200 10
7 Terminal block Blank marker White M-W810PC 1SNA235510R0800 260 0.27
markers MG-CPM-01 41096 1SNB041096R0810 1120 0.400
7 Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Disconnect Ring lug terminal blocks
Description Color Type Part Number Pkg Weight
1SNC168027S0201
qty (1 pce) g
Disconnect With 2 studs M4 and captive Grey RGW6-ST-1-V0 1SNA512124R0000 25 33.66
nuts in wings

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RGW RING LUG TERMINAL BLOCKS
