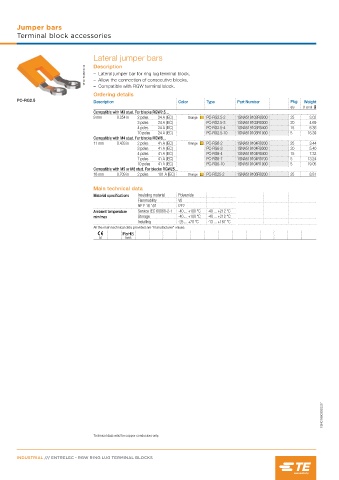

Page 584 - Entrelec Terminal Blocks Master Catalog

Jumper bars
Terminal block accessories

Lateral jumper bars
1SNC160469V0014 Description
– Lateral jumper bar for ring lug terminal block,
– Allow the connection of consecutive blocks,
– Compatible with RGW terminal block.
Ordering details
PC-RG2.5
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Compatible with M3 stud. For blocks RGW2.5…
9 mm 0.354 in 2 poles 24 A (IEC) Orange PC-RG2.5-2 1SNA519103R0200 25 3.02
3 poles 24 A (IEC) PC-RG2.5-3 1SNA519103R0300 20 4.69
4 poles 24 A (IEC) PC-RG2.5-4 1SNA519103R0400 15 6.36
10 poles 24 A (IEC) PC-RG2.5-10 1SNA519103R1000 5 16.39
Compatible with M4 stud. For blocks RGW6…
11 mm 0.433 in 2 poles 41 A (IEC) Orange PC-RG6-2 1SNA519104R0200 25 3.44
3 poles 41 A (IEC) PC-RG6-3 1SNA519104R0300 20 5.40
4 poles 41 A (IEC) PC-RG6-4 1SNA519104R0400 15 7.33
7 poles 41 A (IEC) PC-RG6-7 1SNA519104R0700 5 13.24
10 poles 41 A (IEC) PC-RG6-10 1SNA519104R1000 5 19.05
Compatible with M5 or M6 stud. For blocks RGW25…
18 mm 0.709 in 2 poles 101 A (IEC) Orange PC-RG25-2 1SNA519106R0200 25 8.81

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -40 ... +100 °C -40 ... +212 °C
min/max Storage -40 ... +100 °C -40 ... +212 °C
Installing -25 ... +70 °C -13 ... +167 °C
All the main technical data provided are "manufacturer" values.
CE RoHS

1SNC168036S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RGW RING LUG TERMINAL BLOCKS
