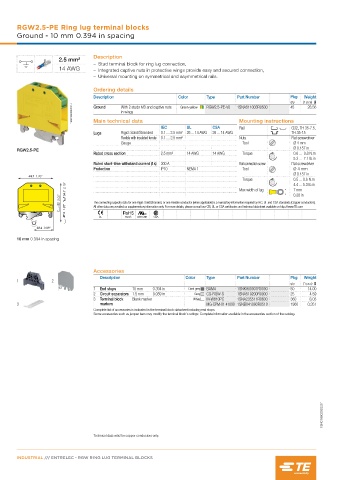

Page 578 - Entrelec Terminal Blocks Master Catalog

RGW2.5-PE Ring lug terminal blocks
Ground - 10 mm 0.394 in spacing

Description
2.5 mm²
– Stud terminal block for ring lug connection,
14 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNC168066V0014 in wings
Ground
RGW2.5-PE-V0
28.56
45
1SNA511003R0500
With 2 studs M3 and captive nuts
Green-yellow
Main technical data
IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail
Lugs Rigid: Solid/Stranded 0.1 … 2.5 mm² 26 ... 14 AWG 26 ... 14 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 2.5 mm² Nuts Flat screwdriver
Gauge Tool Ø 4 mm
Ø 0.157 in
RGW2.5-PE
Rated cross section 2.5 mm² 14 AWG 14 AWG Torque 0.6 ... 0.8 N.m
5.3 ... 7.1 lb.in
Rated short-time withstand current (1s) 300 A Rail connection screw Flat screwdriver
Protection IP10 NEMA 1 Tool Ø 4 mm
Ø 0.157 in
44.7 1.76"
Torque 0.5 ... 0.6 N.m
54.7 2.15" Max width of lug 4.4 ... 5.3 lb.in
7 mm
0.28 in
52 2.05" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
47.2 1.86" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CSA
CE
USR CNR
RoHS
22.4 0.88"
10 mm 0.394 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 Circuit separators 1.5 mm 0.059 in Grey CS-RGW-S 1SNA519200R0000 25 4.59
3 Terminal block Blank marker White M-W610PC 1SNA235511R0600 360 8.03
3 markers MG-CPM-01 41090 1SNB041090R0510 1960 0.351
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNC168026S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RGW RING LUG TERMINAL BLOCKS
