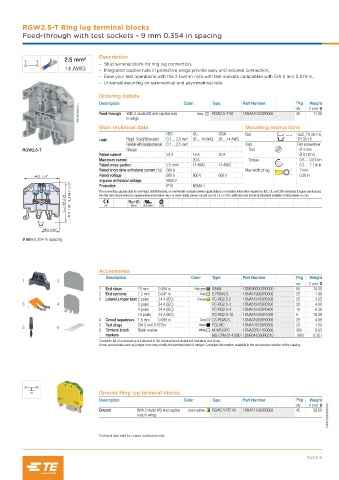

Page 573 - Entrelec Terminal Blocks Master Catalog

RGW2.5-T Ring lug terminal blocks
Feed-through with test sockets - 9 mm 0.354 in spacing

Description
2.5 mm²
– Stud terminal block for ring lug connection,
14 AWG – Integrated captive nuts in protective wings provide easy and secured connection,
– Ease your test operations with the 2 built-in nuts with test sockets compatible with DIA 2 mm 0.079 in,
– Universal mounting on symmetrical and asymmetrical rails.

Ordering details Color Type Part Number Pkg Weight
Description
1SNC168064V0014 Feed-through With 2 studs M3 and captive nuts Grey RGW2.5-T-V0 1SNA510103R0000 qty (1 pce) g
45
11.58
in wings
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
Lugs Rigid: Solid/Stranded 0.1 … 2.5 mm² 26 ... 14 AWG 26 ... 14 AWG TH 35-15
Flexible with insulated ferrule 0.1 … 2.5 mm² Nuts Flat screwdriver
RGW2.5-T Gauge Tool Ø 4 mm
Rated current 24 A 15 A 20 A Ø 0.157 in
Maximum current 20 A Torque 0.6 ... 0.8 N.m
Rated cross section 2.5 mm² 14 AWG 14 AWG 5.3 ... 7.1 lb.in
Rated short-time withstand current (1s) 300 A Max width of lug 7 mm
44.7 1.76" Rated voltage 800 V 600 V 600 V 0.28 in
Impulse withstand voltage 8000 V
54.7 2.15" Protection IP10 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
52 2.05" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
47.2 1.86" CE RoHS USR CNR CSA

22.4 0.88"
9 mm 0.354 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 1.2 mm 0.047 in Grey E-RGW2.5 1SNA519003R0000 25 1.89
3 Lateral jumper bars 2 poles 24 A (IEC) Orange PC-RG2.5-2 1SNA519103R0200 25 3.02
3 4 3 poles 24 A (IEC) PC-RG2.5-3 1SNA519103R0300 20 4.69
4 poles 24 A (IEC) PC-RG2.5-4 1SNA519103R0400 15 6.36
10 poles 24 A (IEC) PC-RG2.5-10 1SNA519103R1000 5 16.39
4 Circuit separators 1.5 mm 0.059 in Grey CS-RGW-S 1SNA519200R0000 25 4.59
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
5 6
6 Terminal block Blank marker White M-W610PC 1SNA235511R0600 360 8.03
markers MG-CPM-01 41090 1SNB041090R0510 1960 0.351
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground Ring lug terminal blocks
Description Color Type Part Number Pkg Weight
1SNC168025S0201
qty (1 pce) g
Ground With 2 studs M3 and captive Green-yellow RGW2.5-PE-V0 1SNA511003R0500 45 28.56
nuts in wings

Technical data valid for copper conductors only.
