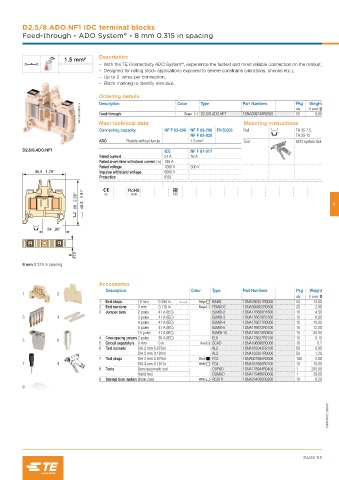

D2.5/8.ADO.NF1 IDC terminal blocks
®
Feed-through - ADO System - 8 mm 0.315 in spacing

Description
1.5 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Black marking to identify wire size.

Ordering details Color Type Part Numbers Pkg Weight
Description
1SNC163118F0014 Feed-through Beige D2.5/8.ADO.NF1 1SNA399749R2600 qty (1 pce) g
9.00
50
Main technical data
Rail
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Mounting instructions TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 1.5 mm² Tool ADO system tool
D2.5/8.ADO.NF1 IEC NF F 61-017
Rated current 24 A 16 A
Rated short-time withstand current (1s) 180 A
Rated voltage 1000 V 500 V
45,5 1.79" Impulse withstand voltage 8000 V
Protection IP20

2.20" 1.91" CE RoHS EAC

56 48,5 4

24 .95"

8 .315"
8 mm 0.315 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 3 mm 0.118 in Beige FEMAD3 1SNA399802R0500 20 2.50
3 Jumper bars 2 poles 41 A (IEC) BJMI8-2 1SNA176669R1600 10 4.50
3 4 3 poles 41 A (IEC) BJMI8-3 1SNA176670R1300 10 6.00
4 poles 41 A (IEC) BJMI8-4 1SNA176671R0000 10 10.00
5 poles 41 A (IEC) BJMI8-5 1SNA176672R0100 10 12.20
10 poles 41 A (IEC) BJMI8-10 1SNA176673R0200 10 20.00
4 Cross spacing jumpers 2 poles 35 A (IEC) EL6 1SNA173627R2100 10 0.10
5 6
5 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10 0.7
6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
7 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
7 8 DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
8 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 Terminal block markers Blank card White RC810 1SNA234000R0200 10 8.20
9

1SNC167013S0201

PAGE 113
