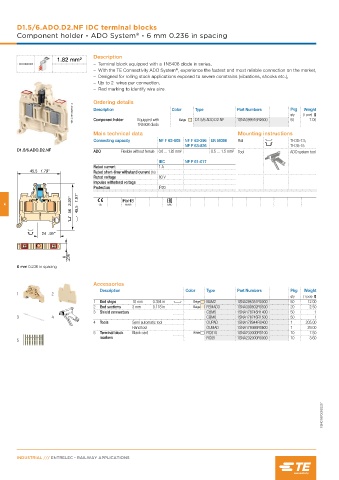

Page 796 - Entrelec Terminal Blocks Master Catalog

D1.5/6.ADO.D2.NF IDC terminal blocks
Component holder - ADO System - 6 mm 0.236 in spacing
®

Description
1.82 mm²
– Terminal block equipped with a 1N5408 diode in series,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.

Ordering details
1SNC167062F0014 Description Color Type Part Numbers Pkg (1 pce) g
Weight
qty
Equipped with
Component holder
1N5408 diode Beige D1.5/6.ADO.D2.NF 1SNA399916R2600 50 7.00
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
NF F 63-826 TH 35-15
D1.5/6.ADO.D2.NF ADO Flexible without ferrule 0.6 … 1.82 mm² 0.5 … 1.5 mm² Tool ADO system tool
IEC NF F 61-017
Rated current 1 A
Rated short-time withstand current (1s)
Rated voltage 80 V
Impulse withstand voltage
Protection IP20

4 CE RoHS EAC

6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 3 mm 0.118 in Beige FEMAD3 1SNA399802R0500 20 2.50
3 Shield connectors CBM5 1SNA178745R1400 50 1
3 4 CBM8 1SNA178746R1500 50 1
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block Blank card White RC610 1SNA233000R0100 10 7.50
markers RC65 1SNA232000R0000 10 3.60
5

1SNC167005S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
