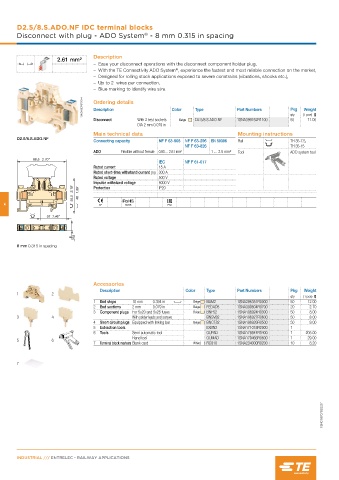

Page 794 - Entrelec Terminal Blocks Master Catalog

D2.5/8.S.ADO.NF IDC terminal blocks
®
Disconnect with plug - ADO System - 8 mm 0.315 in spacing

Description
2.61 mm²
– Ease your disconnect operations with the disconnect component holder plug,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Blue marking to identify wire size.
1SNC163076F0014 Ordering details Color Type Part Numbers Pkg Weight

Description
Disconnect With 2 test sockets Beige D2.5/8.S.ADO.NF 1SNA399752R1100 qty (1 pce) g
50
11.00
DIA 2 mm 0.079 in
Main technical data Mounting instructions
D2.5/8.S.ADO.NF
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 0.93 … 2.61 mm² 1 … 2.5 mm² Tool ADO system tool
IEC NF F 61-017
Rated current 15 A
Rated short-time withstand current (1s) 300 A
Rated voltage 500 V
Impulse withstand voltage 6000 V
Protection IP20

4 CE RoHS EAC

8 mm 0.315 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 2 mm 0.079 in Beige FEDAD5 1SNA399804R0700 20 2.70
3 Component plugs For 5x20 and 5x25 fuses Beige BNF52 1SNA196924R0300 50 8.00
3 4 With solder leads and screws BNSV82 1SNA196927R0600 50 8.00
4 Short circuit plugs Equipped with linking bar Beige BNCT82 1SNA196926R0500 50 9.00
5 Extraction tools EXBN2 1SNA171018R2000 1
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 6
7 Terminal block markers Blank card White RC810 1SNA234000R0200 10 8.20

7

1SNC167078S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
