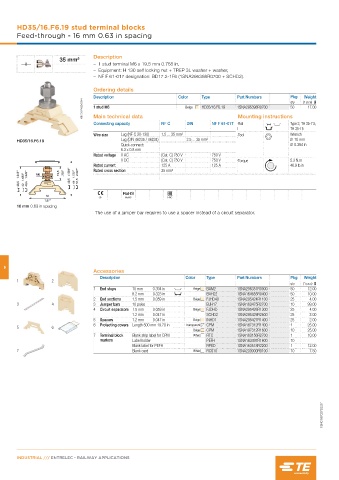

Page 184 - Railways Applications Terminal blocks

HD35/16.F6.19 stud terminal blocks
Feed-through - 16 mm 0.63 in spacing

Description
35 mm²
– 1 stud terminal M6 x 19.5 mm 0.768 in,
– Equipment: H 130 self locking nut + TREP 3L washer + washer,
– NF F 61-017 designation: BD17.2-1F6 (1SNA295398R0700 + SCHD2).

Ordering details
Weight
Description Color Type Part Numbers Pkg (1 pce) g
1SNC167102V0014 1 stud M6 Beige HD35/16.F6.19 1SNA295398R0700 50 17.00
qty
Main technical data
Rail
Connecting capacity NF C DIN NF F 61-017 Mounting instructions Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 1.5 ... 35 mm² Tool Wrench
HD35/16.F6.19 Lug (DIN 46235 / 46234) 2.5 ... 35 mm² Ø 10 mm
Quick-connect: Ø 0.394 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 750 V 750 V
V DC (Cat. C) 750 V 750 V Torque 5.3 N.m
Rated current 125 A 125 A 46.9 lb.in
Rated cross section 35 mm²

CE RoHS EAC
16 mm 0.63 in spacing
The use of a jumper bar requires to use a spacer instead of a circuit separator.

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
8.2 mm 0.323 in BAH22 1SNA164655R0400 50 10.00
2 End sections 1.5 mm 0.059 in Beige FJHD40 1SNA295424R1100 25 4.00
3 4 3 Jumper bars 10 poles BJH17 1SNA163475R2700 10 99.00
4 Circuit separators 1.5 mm 0.059 in Beige FJDHD 1SNA295426R1300 25 4.00
1.2 mm 0.047 in SCHD2 1SNA295429R2600 25 2.00
5 Spacers 1.2 mm 0.047 in Beige INHD1 1SNA295427R1400 25 2.00
6 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
5 6
Beige CPM 1SNA197312R1600 10 25.00
7 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
7 Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167027S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
