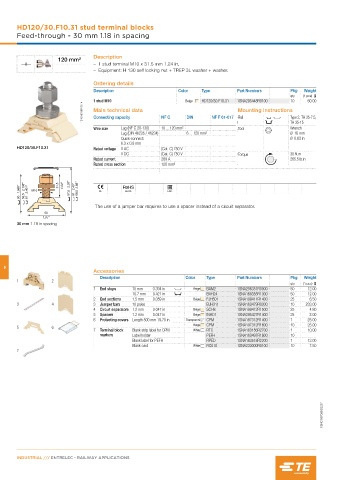

HD120/30.F10.31 stud terminal blocks
Feed-through - 30 mm 1.18 in spacing

Description
120 mm²
– 1 stud terminal M10 x 31.5 mm 1.24 in,
– Equipment: H 130 self locking nut + TREP 3L washer + washer.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1 stud M10 Beige HD120/30.F10.31 1SNA295448R0100 10 60.00
1SNC167099V0014 Main technical data NF C DIN NF F 61-017 Mounting instructions Type 2, TH 35-7.5,
Rail
Connecting capacity
Wrench
Wire size Lug (NF C 20-130) 10 ... 120 mm² Tool TH 35-15
Lug (DIN 46235 / 46234) 6 ... 120 mm² Ø 16 mm
Quick-connect: Ø 0.63 in
6.3 x 0.8 mm
HD120/30.F10.31 Rated voltage V AC (Cat. C) 750 V
V DC (Cat. C) 750 V Torque 30 N.m
Rated current 269 A 265.5 lb.in
Rated cross section 120 mm²

1.968” 2.106” 2.401” M10 31,5 1.24” 2.26” 57,5 2.40” 2.69” 68,5 CE RoHS EAC

50 53,5 61 61
The use of a jumper bar requires to use a spacer instead of a circuit separator.
50
1.97”
30 mm 1.18 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.5 mm 0.059 in Beige FJH501 1SNA199411R1400 25 6.50
3 4 3 Jumper bars 10 poles BJH311 1SNA163479R0300 10 233.00
4 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
5 Spacers 1.2 mm 0.047 in Beige INHD1 1SNA295427R1400 25 2.00
6 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
5 6
7 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50
7

1SNC167055S0201
