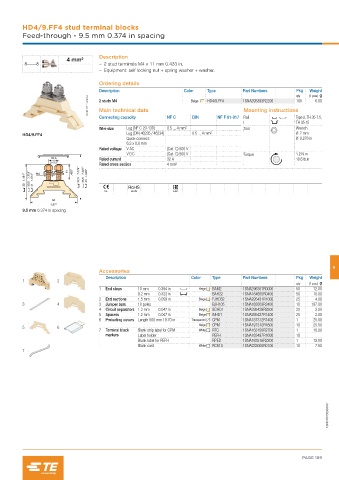

Page 191 - Railways Applications Terminal blocks

HD4/9.FF4 stud terminal blocks
Feed-through - 9.5 mm 0.374 in spacing

Description
4 mm²
– 2 stud terminals M4 x 11 mm 0.433 in,
– Equipment: self locking nut + spring washer + washer.

Ordering details
Description Color Type Part Numbers Pkg (1 pce) g
Weight
qty
1SNC167110V0014 2 studs M4 Beige HD4/9.FF4 1SNA295393R2200 100 6.00
Main technical data
Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 0.5 ... 4 mm² Tool Wrench
Lug (DIN 46235 / 46234) 0.5 ... 4 mm² Ø 7 mm
HD4/9.FF4
Quick-connect: Ø 0.276 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 500 V
V DC (Cat. C) 500 V Torque 1.2 N.m
Rated current 32 A 10.6 lb.in
Rated cross section 4 mm²

CE RoHS EAC

9.5 mm 0.374 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
8.2 mm 0.323 in BAH22 1SNA164655R0400 50 10.00
2 End sections 1.5 mm 0.059 in Beige FJHD32 1SNA295431R1000 25 4.00
3 4 3 Jumper bars 10 poles BJH105 1SNA163503R2400 10 197.00
4 Circuit separators 1.2 mm 0.047 in Beige SCHD1 1SNA295428R2500 25 2.00
5 Spacers 1.2 mm 0.047 in Beige INHD1 1SNA295427R1400 25 2.00
6 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
5 6
7 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50
7

1SNC167066S0201

PAGE 189
