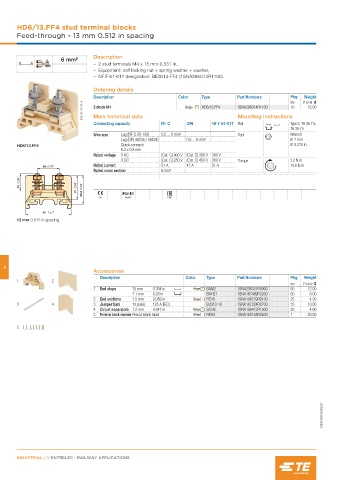

Page 192 - Railways Applications Terminal blocks

HD6/13.FF4 stud terminal blocks
Feed-through - 13 mm 0.512 in spacing

Description
6 mm²
– 2 stud terminals M4 x 15 mm 0.531 in,
– Equipment: self locking nut + spring washer + washer,
– NF F 61-017 designation: BE0013-FF4 (1SNA295014R1100).

Ordering details
Weight
Description Color Type Part Numbers Pkg (1 pce) g
1SNC167104V0014 2 studs M4 Beige HD6/13.FF4 1SNA295014R1100 10 15.00
qty
Mounting instructions
Main technical data
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 0.5 ... 6 mm² Tool Wrench
Lug (DIN 46235 / 46234) 0.5 ... 6 mm² Ø 7 mm
HD6/13.FF4 Quick-connect: Ø 0.276 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 400 V (Cat. C) 380 V 380 V
V DC (Cat. C) 250 V (Cat. C) 450 V 380 V Torque 1.2 N.m
19 0.75" Rated current 51 A 47 A 51 A 10.6 lb.in
Rated cross section 6 mm²
15 0.59" 21 0.83" 25.2 0.99"

CE RoHS EAC

40 1.57"
13 mm 0.512 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
7.1 mm 0.28 in BAH21 1SNA167489R2200 50 8.00
2 End sections 1.5 mm 0.059 in Beige FEH8 1SNA198729R0100 25 4.30
3 4 3 Jumper bars 10 poles 125 A (IEC) BJS13-10 1SNA167224R2700 10 10.00
4 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
5 Terminal block markers Precut blank label White REH3 1SNA163155R2600 1 20.00
5

1SNC167040S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
