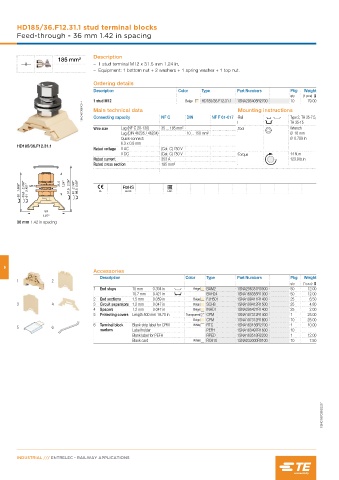

HD185/36.F12.31.1 stud terminal blocks
Feed-through - 36 mm 1.42 in spacing

Description
185 mm²
– 1 stud terminal M12 x 31.5 mm 1.24 in,
– Equipment: 1 bottom nut + 2 washers + 1 spring washer + 1 top nut.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1 stud M12 Beige HD185/36.F12.31.1 1SNA295405R2700 10 79.00
1SNC167088V0014 Main technical data Mounting instructions
NF F 61-017
NF C
DIN
Connecting capacity
Type 2, TH 35-7.5,
Rail
TH 35-15
Wire size Lug (NF C 20-130) 35 ... 185 mm² Tool Wrench
Lug (DIN 46235 / 46234) 10 ... 150 mm² Ø 18 mm
Quick-connect: Ø 0.709 in
6.3 x 0.8 mm
HD185/36.F12.31.1
Rated voltage V AC (Cat. C) 750 V
V DC (Cat. C) 750 V Torque 14 N.m
Rated current 353 A 123.9 lb.in
Rated cross section 185 mm²
1.968” 2.106” 2.401” M12 31,5 1.24” 2.26” 57,5 2.145” 2.69” 68,5 CE RoHS EAC
50 53,5 61 61

50
1.97”
36 mm 1.42 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.5 mm 0.059 in Beige FJH501 1SNA199411R1400 25 6.50
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Spacers 1.2 mm 0.047 in Beige INHD1 1SNA295427R1400 25 2.00
5 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
6 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
5 6
markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167035S0201
