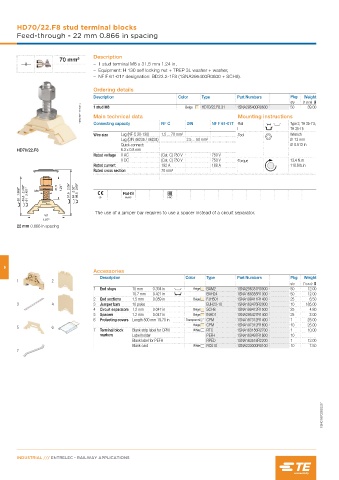

Page 186 - Railways Applications Terminal blocks

HD70/22.F8 stud terminal blocks
Feed-through - 22 mm 0.866 in spacing

Description
70 mm²
– 1 stud terminal M8 x 31.5 mm 1.24 in,
– Equipment: H 130 self locking nut + TREP 3L washer + washer,
– NF F 61-017 designation: BD23.2-1F8 (1SNA295400R0600 + SCH8).

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167111V0014 Main technical data Mounting instructions
HD70/22.F8.31
50
1 stud M8
1SNA295400R0600
39.00
Beige
Connecting capacity
Type 2, TH 35-7.5,
NF F 61-017
NF C
DIN
Rail
TH 35-15
Wire size Lug (NF C 20-130) 1.5 ... 70 mm² Tool Wrench
Lug (DIN 46235 / 46234) 2.5 ... 50 mm² Ø 13 mm
Quick-connect: Ø 0.512 in
HD70/22.F8 6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 750 V 750 V
V DC (Cat. C) 750 V 750 V Torque 13.4 N.m
Rated current 192 A 188 A 118.6 lb.in
Rated cross section 70 mm²
1.968” 2.106” 2.401” M8 31,5 1.24” 2.26” 57,5 2.52” 2.69” 68,5
50 53,5 61 64 CE RoHS EAC
The use of a jumper bar requires to use a spacer instead of a circuit separator.
50
1.97”
22 mm 0.866 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.5 mm 0.059 in Beige FJH501 1SNA199411R1400 25 6.50
3 4 3 Jumper bars 10 poles BJH23-10 1SNA163476R2000 10 185.00
4 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
5 Spacers 1.2 mm 0.047 in Beige INHD1 1SNA295427R1400 25 2.00
6 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
5 6
7 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
markers Label holder PEFH 1SNA163497R1600 10
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50
7

1SNC167028S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
