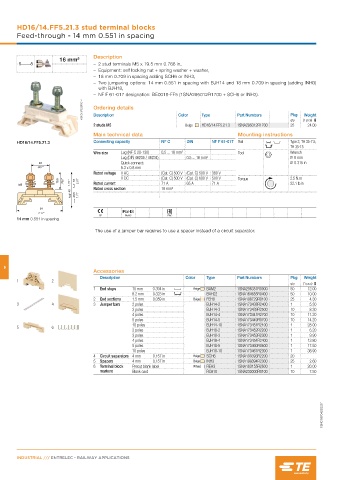

Page 194 - Railways Applications Terminal blocks

HD16/14.FF5.21.3 stud terminal blocks
Feed-through - 14 mm 0.551 in spacing

Description
16 mm²
– 2 stud terminals M5 x 19.5 mm 0.768 in,
– Equipment: self locking nut + spring washer + washer,
– 18 mm 0.709 in spacing adding SCH6 or INH3,
– Two jumpering options: 14 mm 0.551 in spacing with BJH14 and 18 mm 0.709 in spacing (adding INH3)
with BJH18,
– NF F 61-017 designation: BE0018-FF5 (1SNA295012R1700 + SCH6 or INH3).
1SNC167020F0014 Ordering details Color Type Part Numbers Pkg Weight

Description
qty (1 pce) g
2 studs M5 Beige HD16/14.FF5.21.3 1SNA295012R1700 25 24.00
Main technical data Mounting instructions
HD16/14.FF5.21.3 Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 0.5 ... 16 mm² Tool Wrench
Lug (DIN 46235 / 46234) 0.5 ... 16 mm² Ø 8 mm
Quick-connect: Ø 0.315 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 500 V (Cat. C) 500 V 380 V
V DC (Cat. C) 500 V (Cat. C) 600 V 500 V Torque 2.5 N.m
Rated current 71 A 65 A 71 A 22.1 lb.in
Rated cross section 16 mm²

CE RoHS EAC
14 mm 0.551 in spacing
The use of a jumper bar requires to use a spacer instead of a circuit separator.

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
8.2 mm 0.323 in BAH22 1SNA164655R0400 50 10.00
2 End sections 1.5 mm 0.059 in Beige FEH8 1SNA198729R0100 25 4.30
3 4 3 Jumper bars 2 poles BJH14-2 1SNA173438R2400 1 5.30
3 poles BJH14-3 1SNA173439R2500 10 8.30
4 poles BJH14-4 1SNA173441R2700 10 11.20
5 poles BJH14-5 1SNA173449R0700 10 14.20
10 poles BJH14-10 1SNA173451R2100 1 28.00
5 6
2 poles BJH18-2 1SNA173452R2200 1 6.20
3 poles BJH18-3 1SNA173453R2300 1 9.90
4 poles BJH18-4 1SNA173454R2400 1 13.80
5 poles BJH18-5 1SNA173460R0600 1 17.50
10 poles BJH18-10 1SNA173461R2300 1 36.90
4 Circuit separators 4 mm 0.157 in Beige SCH6 1SNA199393R2200 20
5 Spacers 4 mm 0.157 in Beige INH3 1SNA199394R2300 25 2.60
6 Terminal block Precut blank label White REH3 1SNA163155R2600 1 20.00
markers Blank card RC610 1SNA233000R0100 10 7.50

1SNC167042S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
