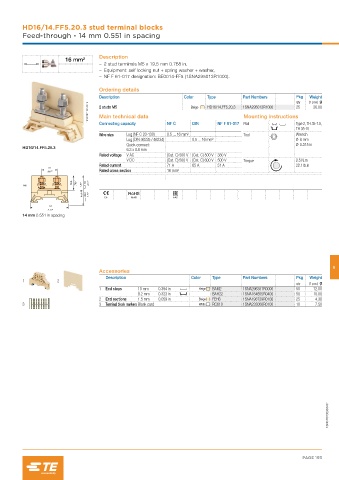

Page 195 - Railways Applications Terminal blocks

HD16/14.FF5.20.3 stud terminal blocks
Feed-through - 14 mm 0.551 in spacing

Description
16 mm²
– 2 stud terminals M5 x 19.5 mm 0.768 in,
– Equipment: self locking nut + spring washer + washer,
– NF F 61-017 designation: BE0014-FF5 (1SNA295013R1000).

Ordering details
Description Color Type Part Numbers Pkg (1 pce) g
Weight
qty
1SNC167100V0014 2 studs M5 Beige HD16/14.FF5.20.3 1SNA295013R1000 25 26.00
Mounting instructions
Main technical data
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 0.5 ... 16 mm² Tool Wrench
Lug (DIN 46235 / 46234) 0.5 ... 16 mm² Ø 8 mm
Quick-connect: Ø 0.315 in
HD16/14.FF5.20.3
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 500 V (Cat. C) 500 V 380 V
V DC (Cat. C) 500 V (Cat. C) 600 V 500 V Torque 2.5 N.m
Rated current 71 A 65 A 51 A 22.1 lb.in
Rated cross section 16 mm²

CE RoHS EAC

14 mm 0.551 in spacing

6
Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
8.2 mm 0.323 in BAH22 1SNA164655R0400 50 10.00
2 End sections 1.5 mm 0.059 in Beige FEH8 1SNA198729R0100 25 4.30
3 3 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167063S0201

PAGE 193
