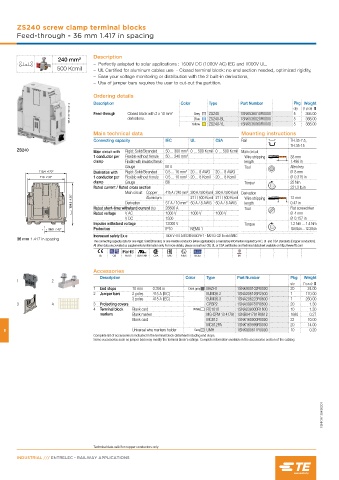

ZS240 screw clamp terminal blocks
Feed-through - 36 mm 1.417 in spacing

Description
240 mm²
– Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL,
500 Kcmil – UL Certified for aluminum cables use - Closed terminal block: no end section needed, optimized rigidity,
– Ease your voltage monitoring or distribution with the 2 built-in derivations,
– Use of jumper bars requires the user to cut-out the partition.

Ordering details Color Type Part Number Pkg Weight
Description
1SNK161153V0014 Feed-through Closed block with 2 x 10 mm² Grey ZS240 1SNK536010R0000 qty (1 pce) g
366.00
5
5
derivations.
366.00
1SNK536020R0000
ZS240-BL
Blue
Yellow ZS240-YL 1SNK536060R0000 5 366.00
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
ZS240 Main circuit with Rigid: Solid/Stranded 50 ... 300 mm² 0 … 500 Kcmil 0 … 500 Kcmil Main circuit
1 conductor per Flexible without ferrule 50 ... 240 mm² Wire stripping 38 mm
clamp Flexible with insulated ferrule length 1.496 in
Gauge B14 Tool Allen key
119.4 4.70" Derivation with Rigid: Solid/Stranded 0.5 ... 16 mm² 20 ... 8 AWG 20 ... 8 AWG Ø 8 mm
110 4.33" 1 conductor per Flexible without ferrule 0.5 ... 10 mm² 20 ... 8 Kcmil 20 ... 8 Kcmil Ø 0.315 in
clamp Gauge B6 Torque 25 Nm
Rated current / Rated cross section 221.3 lb.in
Main circuit Copper 415 A / 240 mm² 380 A / 500 Kcmil 380 A / 500 Kcmil Derivation
124.5 4.90" Derivation Aluminium 57 A / 10 mm² 50 A / 8 AWG 50 A / 8 AWG Wire stripping 12 mm
271 / 500 Kcmil 271 / 500 Kcmil
length
0.47 in
Rated short-time withstand current (1s)
Rated voltage V AC 28800 A 1000 V 1000 V Tool Flat screwdriver
1000 V
Ø 4 mm
V DC 1500 Ø 0.157 in
Impulse withstand voltage 12000 V Torque 1.2 Nm ... 1.4 Nm
36.5 1.43" Protection IP10 NEMA 1 10.6 lb.in ... 12.3 lb.in
Increased safety Ex e 1000 V 415 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC
36 mm 1.417 in spacing
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC ATEX IECEx BV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles 415 A (IEC) BJMI36.2 1SNA206126R2500 1 170.00
3 poles 415 A (IEC) BJMI36.3 1SNA206223R0600 1 260.00
3 4 3 Protecting covers CPBP2 1SNA399787R0500 20 1.30
4 Terminal block Blank card White RC1010 1SNA238000R1600 10 1.30
markers Blank marker MG-CPM 13 41791 1SNB041791R0612 1680 0.27
Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
8 Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161094S0201

Technical data valid for copper conductors only.
