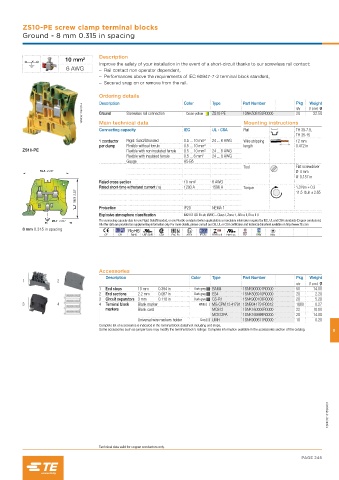

ZS10-PE screw clamp terminal blocks
Ground - 8 mm 0.315 in spacing

Description
10 mm²
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
6 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secured snap on or remove from the rail.

Ordering details Color Type Part Number Pkg Weight
Description
1SNK161016F0014 Ground Screwless rail connection Green-yellow ZS10-PE 1SNK508150R0000 qty (1 pce) g
20
22.50
Main technical data
Connecting capacity IEC UL - CSA Mounting instructions TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 12 mm
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.472 in
ZS10-PE Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 8 AWG
Gauge A5-B5
Tool Flat screwdriver
59.5 2.26" Ø 4 mm
Ø 0.157 in
Rated cross section 10 mm² 6 AWG
Rated short-time withstand current (1s) 1200 A 1596 A Torque 1.3 Nm ± 0.3
56.3 2.22" 11.5 lb.in ± 2.65

Protection IP20 NEMA 1
Explosive atmosphere classification IM2 II 2 GD Ex eb I/II/IIIC – Class I, Zone 1, AEx e II, Ex e II U
26.7 1.05" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
8 mm 0.315 in spacing
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
3 4 4 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog. 8

1SNK161016S0201

Technical data valid for copper conductors only.
