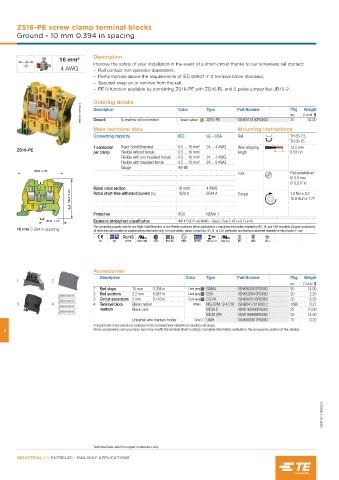

Page 248 - Railways Applications Terminal blocks

ZS16-PE screw clamp terminal blocks
Ground - 10 mm 0.394 in spacing

Description
16 mm²
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
4 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secured snap on or remove from the rail,
– PE.N function available by combining ZS16-PE with ZS16-BL and 2 poles jumper bar JB10-2.

Ordering details
1SNK161019F0014 Description Screwless rail connection Color Type Part Number Pkg (1 pce) g
Weight
qty
20
Ground
32.00
1SNK510150R0000
ZS16-PE
Green-yellow
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 16 mm² 24 ... 4 AWG Wire stripping 13.5 mm
ZS16-PE
per clamp Flexible without ferrule 0.5 ... 16 mm² length 0.531 in
Flexible with non insulated ferrule 0.5 ... 16 mm² 24 ... 4 AWG
Flexible with insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Gauge A6-B6
60.6 2.39"
Tool Flat screwdriver
Ø 5.5 mm
Ø 0.217 in
Rated cross section 16 mm² 4 AWG
56.3 2.22" Rated short-time withstand current (1s) 1920 A 2544 A Torque 1.8 Nm ± 0.2
15.9 lb.in ± 1.77
Protection IP20 NEMA 1
27.9 1.10" Explosive atmosphere classification IM2 II 2 GD Ex eb I/II/IIIC – Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
10 mm 0.394 in spacing
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
3 4 4 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
8 Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161018S0201

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
