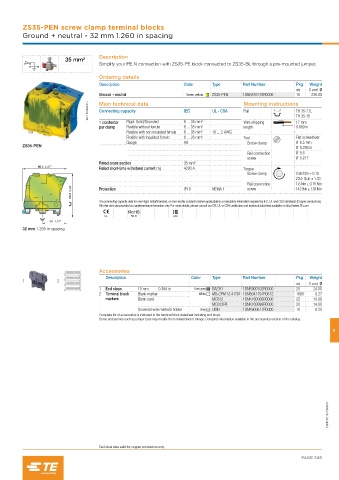

ZS35-PEN screw clamp terminal blocks
Ground + neutral - 32 mm 1.260 in spacing

Description
35 mm²
N
Simplify your PE.N connection with ZS35-PE block connected to ZS35-BL through a pre-mounted jumper.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Ground + neutral Green-yellow ZS35-PEN 1SNK516170R0000 10 236.00
1SNK161063F0014 Main technical data IEC UL - CSA Mounting instructions TH 35-7.5,
Connecting capacity
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 6 ... 35 mm² Wire stripping 17 mm
per clamp Flexible without ferrule 6 ... 35 mm² length 0.669 in
Flexible with non insulated ferrule 6 ... 35 mm² 10 ... 2 AWG
Flexible with insulated ferrule 6 ... 35 mm² Tool Flat screwdriver
Gauge A9 Screw clamp Ø 6.5 mm
ZS35-PEN
Ø 0.256 in
Rail connection Ø 5.5
screw Ø 0.217
Rated cross section 35 mm²
60.3 2.37"
Rated short-time withstand current (1s) 4200 A Torque
Screw clamp 2.65 Nm ± 0.15
23.5 lb.in ± 1.33
Rail connection 1.6 Nm ± 0.15 Nm
63.3 2.49" Protection IP10 NEMA 1 screw 14.2 lb.in ± 1.33 lb.in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS EAC
34 1.34"
32 mm 1.260 in spacing

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
8

1SNK161047S0201

Technical data valid for copper conductors only.
