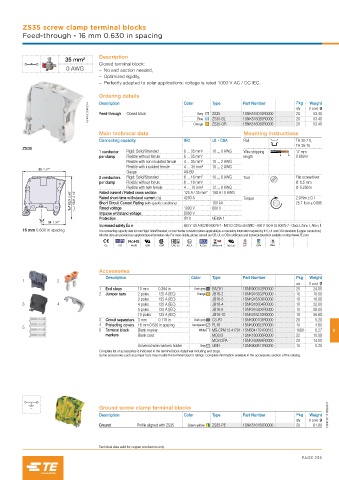

ZS35 screw clamp terminal blocks
Feed-through - 16 mm 0.630 in spacing

Description
35 mm²
Closed terminal block:
0 AWG – No end section needed,
– Optimized rigidity,
– Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.

Ordering details Color Type Part Number Pkg Weight
Description
1SNK161004F0014 Feed-through Closed block Grey ZS35 1SNK516010R0000 qty (1 pce) g
20
53.40
Blue
ZS35-OR
53.40
1SNK516030R0000
Orange ZS35-BL 1SNK516020R0000 20 53.40
20
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZS35
1 conductor Rigid: Solid/Stranded 6 ... 35 mm² 10 ... 0 AWG Wire stripping 17 mm
per clamp Flexible without ferrule 6 ... 35 mm² length 0.669 in
Flexible with non insulated ferrule 4 ... 35 mm² 10 ... 2 AWG
Flexible with insulated ferrule 4 … 35 mm² 10 ... 2 AWG
59 2.32"
Gauge A9-B9
2 conductors Rigid: Solid/Stranded 6 ... 16 mm² 10 ... 6 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 6 ... 16 mm² Ø 6.5 mm
Flexible with twin ferrule 4 … 10 mm² 12 ... 8 AWG Ø 0.256 in
150 A / 0 AWG
125 A / 35 mm²
63.3 2.49" 55.8 2.19" Rated short-time withstand current (1s) 4200 A 100 kA Torque 2.9 Nm ± 0.1
Rated current / Rated cross section
25.7 lb.in ± 0.885
Short Circuit Current Rating (with specific conditions)
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA 1
34 1.34"
Increased safety Ex e 693 V 125 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 150 A UL 60079-7 - Class I, Zone 1, AEx e II
16 mm 0.630 in spacing The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles 125 A (IEC) Orange JB16-2 1SNK916302R0000 10 10.00
3 poles 125 A (IEC) JB16-3 1SNK916303R0000 10 16.00
3 4 4 poles 125 A (IEC) JB16-4 1SNK916304R0000 10 22.00
5 poles 125 A (IEC) JB16-5 1SNK916305R0000 10 28.00
10 poles 125 A (IEC) JB16-10 1SNK916310R0000 10 56.60
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
4 Protecting covers 16 mm 0.630 in spacing Transparent PL16 1SNK900622R0000 10 4.60
5
5 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27 8
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161019S0201
qty (1 pce) g
Ground Profile aligned with ZS35 Green-yellow ZS35-PE 1SNK516150R0000 20 81.80

Technical data valid for copper conductors only.
