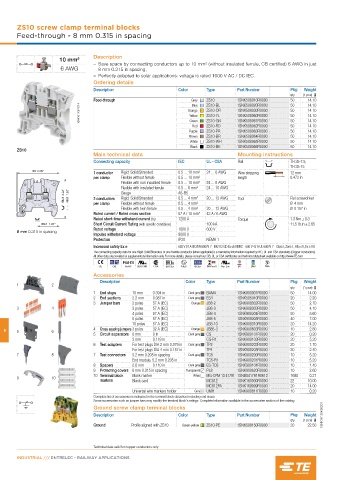

Page 234 - Railways Applications Terminal blocks

ZS10 screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing

Description
10 mm²
– Save space by connecting conductors up to 10 mm² (without insulated ferrule, CB certified) 6 AWG in just
6 AWG 8 mm 0.315 in spacing,
– Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Feed-through Grey ZS10 1SNK508010R0000 50 14.10
1SNK161008F0014 Orange ZS10-OR 1SNK508030R0000 50 14.10
1SNK508020R0000
Blue
50
ZS10-BL
14.10
50
Yellow
1SNK508060R0000
14.10
ZS10-YL
Green
50
1SNK508062R0000
ZS10-RD
14.10
Red ZS10-GN 1SNK508061R0000 50 14.10
Purple ZS10-PR 1SNK508063R0000 50 14.10
Brown ZS10-BR 1SNK508064R0000 50 14.10
White ZS10-WH 1SNK508065R0000 50 14.10
Black ZS10-BK 1SNK508066R0000 50 14.10
ZS10
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
53 2.09"
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 12 mm
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.472 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 10 AWG
56.3 2.22" 48.8 1.92" 2 conductors Gauge A5-B5 20 ... 12 AWG Tool Flat screwdriver
0.5 ... 4 mm²
Rigid: Solid/Stranded
per clamp Flexible without ferrule 0.5 ... 4 mm² Ø 4 mm
Flexible with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Ø 0.157 in
Rated current / Rated cross section 57 A / 10 mm² 42 A / 6 AWG
Rated short-time withstand current (1s) 1200 A Torque 1.3 Nm ± 0.3
26.7 1.05" Short Circuit Current Rating (with specific conditions) 100 kA 11.5 lb.in ± 2.65
Rated voltage 1000 V 600 V
8 mm 0.315 in spacing
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 57 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 42 A UL 60079-7 - Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Jumper bars 2 poles 57 A (IEC) Orange JB8-2 1SNK908302R0000 50 2.70
3 4 3 poles 57 A (IEC) JB8-3 1SNK908303R0000 50 4.10
4 poles 57 A (IEC) JB8-4 1SNK908304R0000 50 5.60
5 poles 57 A (IEC) JB8-5 1SNK908305R0000 40 7.00
10 poles 57 A (IEC) JB8-10 1SNK908310R0000 20 14.20
8 5 6 4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Circuit separators 0 mm 0 in Dark grey CS 1SNK900101R0000 20 0.20
3 mm 0.118 in CS-R1 1SNK900103R0000 20 5.20
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 8 7 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
8 Spacers 2.8 mm 0.110 in Dark grey ES-TC8 1SNK900104R0000 10 1.40
9 Protecting covers 8 mm 0.315 in spacing Transparent PL8 1SNK900620R0000 10 2.60
10 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
9 10
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161004S0201
qty (1 pce) g
Ground Profile aligned with ZS10 Green-yellow ZS10-PE 1SNK508150R0000 20 22.50

Technical data valid for copper conductors only.
