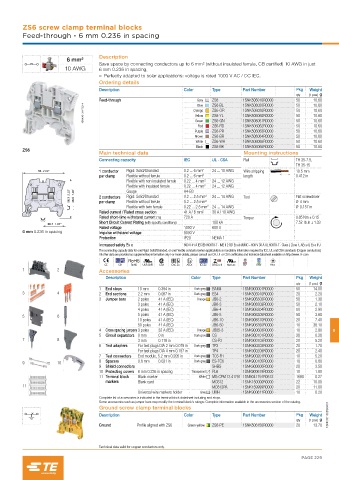

Page 231 - Railways Applications Terminal blocks

ZS6 screw clamp terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
6 mm²
Save space by connecting conductors up to 6 mm² (without insulated ferrule, CB certified) 10 AWG in just
10 AWG 6 mm 0.236 in spacing,
– Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Feed-through Grey ZS6 1SNK506010R0000 50 10.60
1SNK161011F0014 Orange ZS6-OR 1SNK506030R0000 50 10.60
50
ZS6-BL
Blue
1SNK506020R0000
10.60
50
ZS6-YL
Yellow
10.60
1SNK506060R0000
Green
ZS6-RD
1SNK506062R0000
10.60
50
Red ZS6-GN 1SNK506061R0000 50 10.60
Purple ZS6-PR 1SNK506063R0000 50 10.60
Brown ZS6-BR 1SNK506064R0000 50 10.60
White ZS6-WH 1SNK506065R0000 50 10.60
Black ZS6-BK 1SNK506066R0000 50 10.60
ZS6
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
53 2.09" 1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible without ferrule 0.2 ... 6 mm² length 0.412 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
56.3 2.22" 48.8 1.92" 2 conductors Gauge A4-B3 24 ... 14 AWG Tool Flat screwdriver
0.2 ... 2.5 mm²
Rigid: Solid/Stranded
per clamp
Flexible without ferrule
Flexible with twin ferrule 0.2 ... 2.5 mm² Ø 4 mm
0.22 ... 2.5 mm² 24 ... 14 AWG
Ø 0.157 in
Rated current / Rated cross section 41 A / 6 mm² 30 A / 10 AWG
Rated short-time withstand current (1s) 720 A Torque 0.85 Nm ± 0.15
26.7 1.05" Short Circuit Current Rating (with specific conditions) 100 kA 7.52 lb.in ± 1.33
Rated voltage 1000 V 600 V
6 mm 0.236 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 41 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 30 A UL 60079-7 - Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
1 2 Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
3 4 2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
5 6
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
50 poles 41 A (IEC) JB6-50 1SNK906350R0000 10 38.10
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80 8
5 Circuit separators 0 mm 0 in Dark grey CS 1SNK900101R0000 20 0.20
7 8 3 mm 0.118 in CS-R1 1SNK900103R0000 20 5.20
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
9 10 8 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
9 Shield connectors SHBS 1SNK900600R0000 20 3.50
10 Protecting covers 6 mm 0.236 in spacing Transparent PL6 1SNK900619R0000 10 1.80
11 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
11 MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161008S0201
qty (1 pce) g
Ground Profile aligned with ZS6 Green-yellow ZS6-PE 1SNK506150R0000 20 13.70

Technical data valid for copper conductors only.
