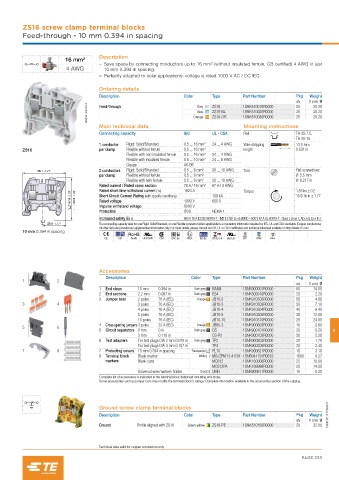

Page 235 - Railways Applications Terminal blocks

ZS16 screw clamp terminal blocks
Feed-through - 10 mm 0.394 in spacing

Description
16 mm²
– Save space by connecting conductors up to 16 mm² (without insulated ferrule, CB certified) 4 AWG in just
4 AWG 10 mm 0.394 in spacing,
– Perfectly adapted to solar applications: voltage is rated 1000 V AC / DC IEC.

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNK161006F0014 Orange ZS16-BL 1SNK510020R0000 25 20.20
25
Feed-through
20.20
ZS16
1SNK510010R0000
Grey
Blue
ZS16-OR
1SNK510030R0000
25
20.20
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 16 mm² 24 ... 4 AWG Wire stripping 13.5 mm
ZS16 per clamp Flexible without ferrule 0.5 ... 16 mm² length 0.531 in
Flexible with non insulated ferrule 0.5 ... 16 mm² 24 ... 4 AWG
Flexible with insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Gauge A6-B6
56.1 2.21" 2 conductors Rigid: Solid/Stranded 0.5 ... 6 mm² 20 ... 10 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.5 ... 6 mm² Ø 5.5 mm
Flexible with twin ferrule 0.5 ... 6 mm² 20 ... 10 AWG Ø 0.217 in
Rated current / Rated cross section 76 A / 16 mm² 67 A / 4 AWG 1.8 Nm ± 0.2
1920 A
Rated short-time withstand current (1s)
57.8 2.28" 50.3 1.98" Short Circuit Current Rating (with specific conditions) 1000 V 100 kA Torque 15.9 lb.in ± 1.77
Rated voltage
600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 76 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 67 A UL 60079-7 - Class I, Zone 1, AEx e II, Ex e II U
29.8 1.17" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
10 mm 0.394 in spacing
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Jumper bars 2 poles 76 A (IEC) Orange JB10-2 1SNK910302R0000 50 4.60
3 4 3 poles 76 A (IEC) JB10-3 1SNK910303R0000 50 7.10
4 poles 76 A (IEC) JB10-4 1SNK910304R0000 40 9.40
5 poles 76 A (IEC) JB10-5 1SNK910305R0000 30 12.00
10 poles 76 A (IEC) JB10-10 1SNK910310R0000 20 24.00
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 6
5 Circuit separators 0 mm 0 in Dark grey CS 1SNK900101R0000 20 0.20 8
3 mm 0.118 in CS-R1 1SNK900103R0000 20 5.20
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 8 7 Protecting covers 10 mm 0.394 in spacing Transparent PL10 1SNK900621R0000 10 3.10
8 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161017S0201
qty (1 pce) g
Ground Profile aligned with ZS16 Green-yellow ZS16-PE 1SNK510150R0000 20 32.00

Technical data valid for copper conductors only.
PAGE 233
