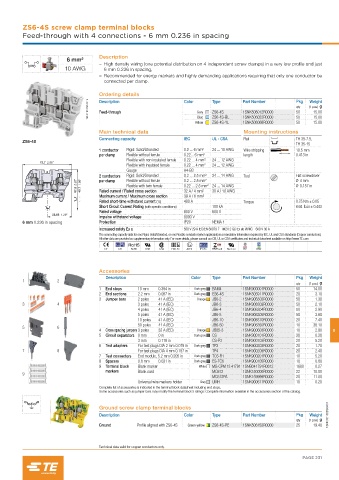

Page 233 - Railways Applications Terminal blocks

ZS6-4S screw clamp terminal blocks
Feed-through with 4 connections - 6 mm 0.236 in spacing

Description
6 mm²
– High density wiring (one potential distribution on 4 independent screw clamps) in a very low profile and just
10 AWG 6 mm 0.236 in spacing,
– Recommended for energy markets and highly demanding applications requiring that only one conductor be
connected per clamp.

Ordering details Pkg
1SNK161078V0014 Description Color Grey Type Part Number qty (1 pce) g
Weight
ZS6-4S
Feed-through
15.00
50
1SNK506012R0000
Blue
15.00
50
ZS6-4S-YL
1SNK506068R0000
Yellow ZS6-4S-BL 1SNK506022R0000 50 15.00
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZS6-4S
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible without ferrule 0.22... 6 mm² length 0.413 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
72.7 2.86"
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
2 conductors Rigid: Solid/Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
57.2 2.25" 49.7 1.96" per clamp Flexible with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.157 in
Ø 4 mm
0.2 ... 2.5 mm²
Flexible without ferrule
30 A / 10 AWG
Rated current / Rated cross section
32 A / 4 mm²
Maximum current / Maximum cross section 39 A / 6 mm²
Rated short-time withstand current (1s) 480 A Torque 0.75 Nm ± 0.05
Short Circuit Current Rating (with specific conditions) 100 kA 6.64 lb.in ± 0.443
Rated voltage 800 V 600 V
35.65 1.29"
Impulse withstand voltage 8000 V
6 mm 0.236 in spacing Protection IP20 NEMA 1
Increased safety Ex e 550 V 29 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 600 V 30 A
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES6-4S 1SNK505911R0000 20 3.10
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 4 3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
50 poles 41 A (IEC) JB6-50 1SNK906350R0000 10 38.10
5 6
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80 8
5 Circuit separators 0 mm 0 in Dark grey CS 1SNK900101R0000 20 0.20
3 mm 0.118 in CS-R1 1SNK900103R0000 20 5.20
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
7 8 For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
8 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
9 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
9
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161068S0201
qty (1 pce) g
Ground Profile aligned with ZS6-4S Green-yellow ZS6-4S-PE 1SNK506152R0000 25 19.40

Technical data valid for copper conductors only.
