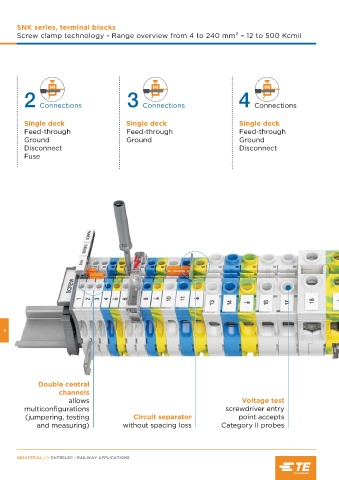

SNK series, terminal blocks
       Screw clamp technology - Range overview from 4 to 240 mm2 – 12 to 500 Kcmil











          2    Connections                    3    Connections                       4    Connections




          Single deck                        Single deck                             Single deck
          Feed-through                       Feed-through                            Feed-through
          Ground                             Ground                                  Ground
          Disconnect                                                                 Disconnect
          Fuse




































  8










              Double central
                      channels
                         allows                                                       Voltage test
          multiconfigurations                                                    screwdriver entry
          (jumpering, testing                   Circuit separator                    point accepts
              and measuring)                without spacing loss               Category II probes
