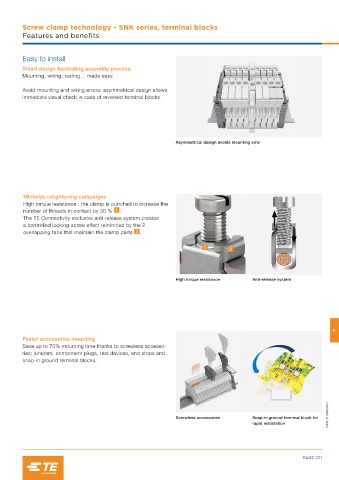

Screw clamp technology - SNK series, terminal blocks
Features and benefits
Easy to install
Smart design facilitating assembly process.
Mounting, wiring, testing… made easy.
Avoid mounting and wiring errors: asymmetrical design allows
immediate visual check in case of reversed terminal blocks.
Asymmetrical design avoids mounting error
Minimize retightening campaigns
High torque resistance : the clamp is punched to increase the
number of threads in contact by 30 % 1 .
The TE Connectivity exclusive anti-release system creates
a controlled locking-screw effect reinforced by the 2
overlapping tabs that maintain the clamp parts 2 .
1 2
High torque resistance Anti-release system
8
Faster accessories mounting
Save up to 70% mounting time thanks to screwless accesso-
ries: jumpers, component plugs, test devices, end stops and
snap-in ground terminal blocks.
1SNK161092S0201
Screwless accessories Snap-in ground terminal block for
rapid installation
