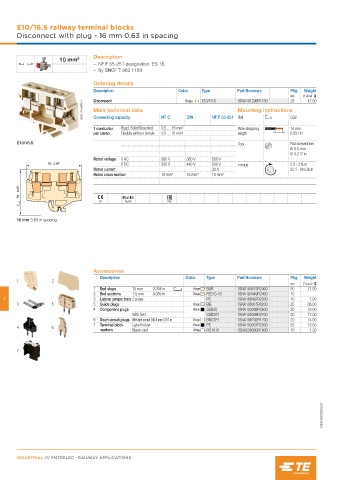

Page 218 - Railways Applications Terminal blocks

E10/16.S railway terminal blocks
Disconnect with plug - 16 mm 0.63 in spacing

Description
10 mm²
– NF F 55-251 designation: ES 16,
– Sy SNCF 7 963 1109

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
47.00
E10/16.S
Disconnect
1SNA191296R1100
25
1SNC167142F0014 Main technical data NF C DIN NF F 55-251 Mounting instructions G32
Beige
Rail
Connecting capacity
1 conductor Rigid: Solid/Stranded 0.5 … 16 mm² Wire stripping 14 mm
per clamp Flexible without ferrule 0.5 … 10 mm² length 0.551 in
E10/16.S Tool Flat screwdriver
Ø 5.5 mm
Ø 0.217 in
Rated voltage V AC 500 V 380 V 500 V
V DC 500 V 440 V 500 V Torque 2.5 - 3 N.m
Rated current 30 A 22.1 - 26.6 lb.in
Rated cross section 10 mm² 10 mm² 10 mm²

CE RoHS EAC

16 mm 0.63 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAR 1SNA164519R2400 50 11.00
2 End sections 1.5 mm 0.059 in Beige FEE10-16 1SNA193449R2400 10
7 3 Lateral jumper bars 2 poles PC 1SNA168497R2300 10 7.00
3 5 5 Guide plugs Beige BIE 1SNA196915R0200 25 36.00
4 Component plugs Black SSB20 1SNA103098R2600 20 15.00
With test SSB20T 1SNA103099R2700 20 17.00
6 Short circuit plugs With test socket DIA 4 mm 0.157 in Beige BNSTP1 1SNA196792R1700 20 14.00
7 Terminal block Label holder Black PE 1SNA103007R2300 25 13.00
4 6
markers Blank card White RC1010 1SNA238000R1600 10 1.30

7

1SNC167025S0201
