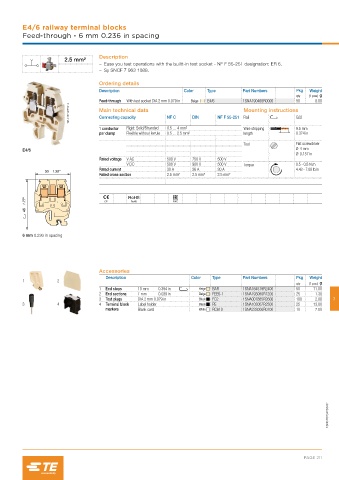

E4/6 railway terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
2.5 mm²
– Ease you test operations with the builtt-in test socket - NF F 55-251 designation: ER 6,
– Sy SNCF 7 963 1088.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
Feed-through With test socket DIA 2 mm 0.079 in Beige E4/6 1SNA190468R0000 50 8.00
1SNC167147F0014 Main technical data NF C DIN NF F 55-251 Mounting instructions G32
Connecting capacity
Rail
1 conductor Rigid: Solid/Stranded 0.5 … 4 mm² Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.5 … 2.5 mm² length 0.374 in
Tool Flat screwdriver
Ø 4 mm
E4/6
Ø 0.157 in
Rated voltage V AC 500 V 750 V 500 V
V DC 500 V 900 V 500 V Torque 0.5 - 0.8 N.m
Rated current 30 A 26 A 30 A 4.43 - 7.08 lb.in
Rated cross section 2.5 mm² 2.5 mm² 2.5 mm²

CE RoHS EAC

6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAR 1SNA164519R2400 50 11.00
2 End sections 1 mm 0.039 in Beige FEE6-1 1SNA193080R1200 25 1.30
3 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00 7
3 4 4 Terminal block Label holder Black PE 1SNA103007R2300 25 13.00
markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167047S0201
