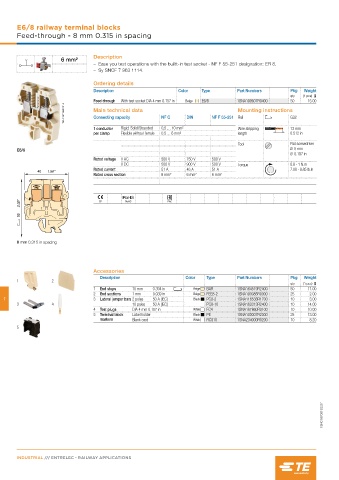

Page 214 - Railways Applications Terminal blocks

E6/8 railway terminal blocks
Feed-through - 8 mm 0.315 in spacing

Description
6 mm²
– Ease you test operations with the builtt-in test socket - NF F 55-251 designation: ER 8,
– Sy SNCF 7 963 1114.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
Feed-through With test socket DIA 4 mm 0.157 in Beige E6/8 1SNA190607R0400 50 15.00
1SNC167148F0014 Main technical data NF C DIN NF F 55-251 Mounting instructions G32
Connecting capacity
Rail
1 conductor Rigid: Solid/Stranded 0.5 … 10 mm² Wire stripping 13 mm
per clamp Flexible without ferrule 0.5 … 6 mm² length 0.512 in
Tool Flat screwdriver
Ø 5 mm
E6/8
Ø 0.197 in
Rated voltage V AC 500 V 750 V 500 V
V DC 500 V 900 V 500 V Torque 0.8 - 1 N.m
Rated current 51 A 46 A 51 A 7.08 - 8.85 lb.in
Rated cross section 6 mm² 6 mm² 6 mm²

CE RoHS EAC

8 mm 0.315 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAR 1SNA164519R2400 50 11.00
2 End sections 1 mm 0.039 in Beige FEE8-2 1SNA193085R0300 25 2.00
7 3 Lateral jumper bars 2 poles 50 A (IEC) Black PC8-2 1SNA116538R1700 10 3.00
3 4 10 poles 50 A (IEC) PC8-10 1SNA163313R2400 10 14.00
4 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
5 Terminal block Label holder Black PE 1SNA103007R2300 25 13.00
markers Blank card White RC810 1SNA234000R0200 10 8.20
5

1SNC167081S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
