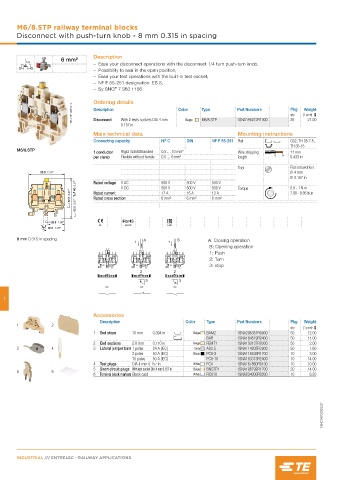

Page 216 - Railways Applications Terminal blocks

M6/8.STP railway terminal blocks
Disconnect with push-turn knob - 8 mm 0.315 in spacing

Description
6 mm²
1/4
– Ease your disconnect operations with the disconnect 1/4 turn push-turn knob,
– Possibility to seal in the open position,
– Ease your test operations with the built-in test socket,
– NF F 55-251 designation: ES 8,
– Sy SNCF 7 963 1156.

Ordering details
1SNC167143F0014 Description Color Type Part Numbers Pkg (1 pce) g
Weight
qty
With 2 tests sockets DIA 4 mm
Disconnect
0.157 in Beige M6/8.STP 1SNA195212R1000 25 21.00
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 55-251 Rail G32, TH 35-7.5,
TH 35-15
M6/8.STP
1 conductor Rigid: Solid/Stranded 0.5 … 10 mm² Wire stripping 11 mm
per clamp Flexible without ferrule 0.5 … 6 mm² length 0.433 in
Tool Flat screwdriver
55.5 2.19" Ø 4 mm
Ø 0.157 in
60 2.37" Rated voltage V AC 500 V 500 V 500 V Torque 0.8 - 1 N.m
500 V
500 V
500 V
V DC
57.5 2.27" Rated current 17 A 15 A 12 A 7.08 - 8.85 lb.in
6 mm²
Rated cross section
6 mm²
6 mm²
52.5 2.07"
25.5 1.00"
CE RoHS EAC
30.5 1.20"
8 mm 0.315 in spacing A B A: Closing operation
1 1
B: Opening operation
1: Push
2: Turn
3: stop
2 2
3 3

7

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
BAR 1SNA164519R2400 50 11.00
2 End sections 2.8 mm 0.110 in Beige FEMT1 1SNA193137R0300 50 2.00
3 4 3 Lateral jumper bars 1 poles 24 A (IEC) Grey AD2.5 1SNA114205R2000 50 1.60
2 poles 50 A (IEC) Black PC8-2 1SNA116538R1700 10 3.00
10 poles 50 A (IEC) PC8-10 1SNA163313R2400 10 14.00
4 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
5 Short circuit plugs With test socket DIA 4 mm 0.157 in Beige BNSTP1 1SNA196792R1700 20 14.00
5 6
6 Terminal block markers Blank card White RC810 1SNA234000R0200 10 8.20

1SNC167026S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
