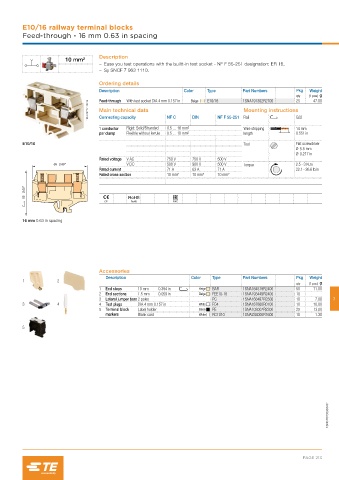

Page 215 - Railways Applications Terminal blocks

E10/16 railway terminal blocks
Feed-through - 16 mm 0.63 in spacing

Description
10 mm²
– Ease you test operations with the builtt-in test socket - NF F 55-251 designation: ER 16,
– Sy SNCF 7 963 1110.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
25
Feed-through
With test socket DIA 4 mm 0.157 in
E10/16
47.00
1SNA191302R2700
Beige
1SNC167141F0014 Main technical data NF C DIN NF F 55-251 Mounting instructions G32
Connecting capacity
Rail
1 conductor Rigid: Solid/Stranded 0.5 … 16 mm² Wire stripping 14 mm
per clamp Flexible without ferrule 0.5 … 10 mm² length 0.551 in
E10/16 Tool Flat screwdriver
Ø 5.5 mm
Ø 0.217 in
Rated voltage V AC 750 V 750 V 500 V
V DC 500 V 900 V 500 V Torque 2.5 - 3 N.m
Rated current 71 A 63 A 71 A 22.1 - 26.6 lb.in
Rated cross section 10 mm² 10 mm² 10 mm²

CE RoHS EAC

16 mm 0.63 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAR 1SNA164519R2400 50 11.00
2 End sections 1.5 mm 0.059 in Beige FEE10-16 1SNA193449R2400 10
3 Lateral jumper bars 2 poles PC 1SNA168497R2300 10 7.00 7
3 4 4 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
5 Terminal block Label holder Black PE 1SNA103007R2300 25 13.00
markers Blank card White RC1010 1SNA238000R1600 10 1.30
5

1SNC167053S0201

PAGE 213
