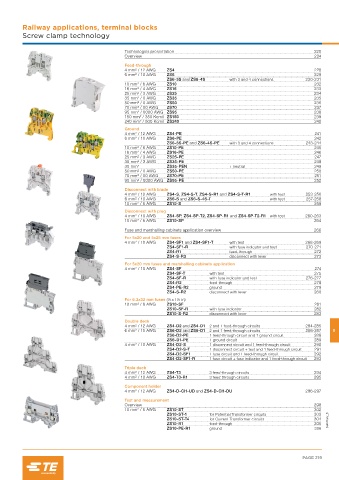

Page 221 - Railways Applications Terminal blocks

Railway applications, terminal blocks
Screw clamp technology

Technologies presentation 220
Overview 224
Feed-through
4 mm² / 12 AWG ZS4 228
6 mm² / 10 AWG ZS6 229
ZS6-3S and ZS6-4S with 3 and 4 connections 230-231
10 mm² / 6 AWG ZS10 232
16 mm² / 4 AWG ZS16 233
25 mm² / 3 AWG ZS25 234
35 mm² / 0 AWG ZS35 235
50 mm² / 0 AWG ZS50 236
70 mm² / 00 AWG ZS70 237
95 mm² / 0000 AWG ZS95 238
150 mm² / 350 Kcmil ZS150 239
240 mm² / 500 Kcmil ZS240 240
Ground
4 mm² / 12 AWG ZS4-PE 241
6 mm² / 10 AWG ZS6-PE 242
ZS6-3S-PE and ZS6-4S-PE with 3 and 4 connections 243-244
10 mm² / 6 AWG ZS10-PE 245
16 mm² / 4 AWG ZS16-PE 246
25 mm² / 3 AWG ZS25-PE 247
35 mm² / 2 AWG ZS35-PE 248
35 mm² ZS35-PEN + neutral 249
50 mm² / 0 AWG ZS50-PE 250
70 mm² / 00 AWG ZS70-PE 251
95 mm² / 0000 AWG ZS95-PE 252
Disconnect with blade
4 mm² / 10 AWG ZS4-S, ZS4-S-T, ZS4-S-R1 and ZS4-S-T-R1 with test 253-256
6 mm² / 10 AWG ZS6-S and ZS6-S-4S-T with test 257-258
10 mm² / 6 AWG ZS10-S 259
Disconnect with plug
4 mm² / 10 AWG ZS4-SP, ZS4-SP-T2, ZS4-SP-R1 and ZS4-SP-T2-R1 with test 260-263
10 mm² / 6 AWG ZS10-SP 264
Fuse and marshalling cabinets application overview 266
For 5x20 and 5x25 mm fuses
4 mm² / 10 AWG ZS4-SF1 and ZS4-SF1-T with test 268-269
ZS4-SF1-R with fuse indicator and test 270-271
ZS4-R1 feed-through 272
ZS4-S-R3 disconnect with lever 273
For 5x20 mm fuses and marshalling cabinets application
4 mm² / 10 AWG ZS4-SF 274
ZS4-SF-T with test 275
ZS4-SF-R with fuse indicator and test 276-277
ZS4-R2 feed-through 278
ZS4-PE-R2 ground 279
ZS4-S-R2 disconnect with lever 280
For 6.3x32 mm fuses (¼ x 1¼ in)
10 mm² / 6 AWG ZS10-SF 281
ZS10-SF-R with fuse indicator 282
ZS10-S-R2 disconnect with lever 283
Double deck
4 mm² / 12 AWG ZS4-D2 and ZS4-D1 2 and 1 feed-through circuits 284-285
6 mm² / 10 AWG ZS6-D2 and ZS6-D1 2 and 1 feed-through circuits 286-287 8
ZS6-D2-PE 1 feed-through circuit and 1 ground circuit 288
ZS6-D1-PE 1 ground circuit 289
4 mm² / 10 AWG ZS4-D2-S 1 disconnect circuit and 1 feed-through circuit 290
ZS4-D2-S-T 1 disconnect circuit + test and 1 feed-through circuit 291
ZS4-D2-SF1 1 fuse circuit and 1 feed-through circuit 292
ZS4-D2-SF1-R 1 fuse circuit + fuse indicator and 1 feed-through circuit 293
Triple deck
4 mm² / 12 AWG ZS4-T3 3 feed-through circuits 294
4 mm² / 10 AWG ZS4-T3-R1 3 feed-through circuits 295
Component holder
4 mm² / 12 AWG ZS4-D-CH-UD and ZS4-D-CH-DU 296-297
Test and measurement
Overview 298
10 mm² / 6 AWG ZS10-ST 302
ZS10-ST-1 for Potential Transformer circuits 303
ZS10-ST-T4 for Current Transformer circuits 304 Summary_8
ZS10-R1 feed-through 305
ZS10-PE-R1 ground 306

PAGE 219
