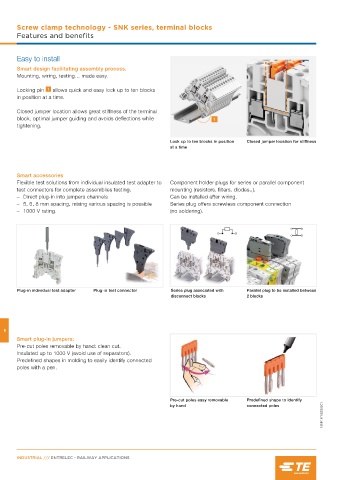

Screw clamp technology - SNK series, terminal blocks
Features and benefits

Easy to install

Smart design facilitating assembly process.
Mounting, wiring, testing… made easy.

Locking pin 1 allows quick and easy lock up to ten blocks
in position at a time.

Closed jumper location allows great stiffness of the terminal
block, optimal jumper guiding and avoids deflections while 1
tightening.

Lock up to ten blocks in position Closed jumper location for stiffness
at a time

Smart accessories
Flexible test solutions from individual insulated test adapter to Component holder plugs for series or parallel component
test connectors for complete assemblies testing. mounting (resistors, filters, diodes..).
– Direct plug-in into jumpers channels Can be installed after wiring.
– 5, 6, 8 mm spacing, mixing various spacing is possible Series plug offers screwless component connection
– 1000 V rating. (no soldering).

Plug-in individual test adapter Plug-in test connector Series plug associated with Parallel plug to be installed between
disconnect blocks 2 blocks

8
Smart plug-in jumpers:
Pre-cut poles removable by hand: clean cut.
Insulated up to 1000 V (avoid use of separators).
Predefined shapes in molding to easily identify connected
poles with a pen.

Pre-cut poles easy removable Predefined shape to identify
1SNK161092S0201
by hand connected poles
